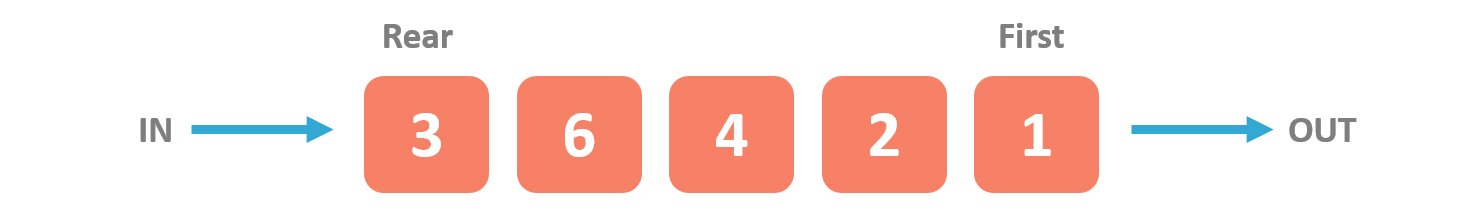

A queue is a linear data structure that stores the elements sequentially. It uses the FIFO (First In First Out) approach for accessing elements. Queues are typically used to manage threads in multithreading and implementing priority queuing systems. In this article, we will learn about different types of queue data structures, basic operations performed on them, implementation, and queue applications.


A queue is an important data structure in programming. A queue follows the FIFO (First In First Out) method and is open at both of its ends. Data insertion is done at one end, the rear end or the tail of the queue, while deletion is done at the other end, called the front end or the head of the queue.

Breadth-First Search Algorithm
Breadth-First Search Algorithm
A graph traversal algorithm called breadth-first search investigates every node in the graph starting with the root node. In this article, we will briefly discuss BFS algorithm.

Red Black Tree
Red Black Tree
Red Balck tree variant of tree data structure which comes under the category of the self-balanced binary search tree. A binary search tree is the most popular variant of the...read more

Real Life Queue in Data Structure Example

Let’s consider a queue in data structure example. A line of people is waiting to buy a ticket at a cinema hall. A new person will join the line from the end, and the person standing at the front will be the first to get the ticket and leave the line. Similarly in a queue data structure, data added first will leave the queue first.

Some other applications of the queue in real-life are:

  • People on an escalator
  • Cashier line in a store
  • A car wash line
  • One way exits
Quick Sort in C
Quick Sort in C
Have you ever wondered how large datasets are sorted efficiently in programming? Quick Sort in C is the answer, utilizing a divide-and-conquer strategy to sort arrays rapidly by partitioning them...read more
Merge Sort Algorithm (With Code)
Merge Sort Algorithm (With Code)
Merge Sort Algorithm is one of the sorting algorithm similar to selection sort, insertion sort, quick sort algorithms. In this article, we will briefly discuss merge sort algorithm and its...read more
Bubble Sort Algorithm (With Code)
Bubble Sort Algorithm (With Code)
In today’s world of continuous data generation, it is of utmost importance for all businesses to sort data linearly and attain relationships on the same. With different types...read more
Linked List Examples in C and Python
Linked List Examples in C and Python
In the previous articles, you have gone through Linked List and their types. In this article, let us discuss the Top 25 operations of Linked Lists and their examples in...read more

Types of Queues in Data Structure

There are four different types of queues in data structures:

Embark on an enriching career in Programming with top-notch programs and online programming courses from prestigious institutions

Simple Queue

Simple Queue is a linear data structure that follows the First-In-First-Out (FIFO) principle, where elements are added to the rear (back) and removed from the front (head).

  • Ordered collection of comparable data kinds.
  • Queue structure is FIFO (First in, First Out).
  • When a new element is added, all elements added before the new element must be deleted in order to remove the new element.
Insertion Sort Algorithm in C
Insertion Sort Algorithm in C
Insertion sort in C is a straightforward, efficient sorting algorithm, particularly useful for small datasets. It works by building a sorted array one element at a time, picking each element...read more
Binary Search Algorithm (With Code)
Binary Search Algorithm (With Code)
In our day-to-day life, we all tend to search for different queries. The binary search algorithm is one of the popular searches used to find an element in an array...read more
Types of Binary Tree in Data Structure
Types of Binary Tree in Data Structure
In this article, you will learn about the different Binary tree types in Data structure.

Circular Queue

A circular queue is a special case of a simple queue in which the last member is linked to the first. As a result, a circle-like structure is formed.

  • The last node is connected to the first node.
  • Also known as a Ring Buffer, the nodes are connected end to end.
  • Insertion takes place at the front of the queue, and deletion at the end of the queue.
  • Circular queue application: Insertion of days in a week.
Now let’s take a look at the priority queue in the data structure.

Priority Queue

In a priority queue, the nodes will have some predefined priority in the priority queue. The node with the least priority will be the first to be removed from the queue. Insertion takes place in the order of arrival of the nodes.

Some of the applications of priority queue:

  • Dijkstra’s shortest path algorithm
  • Prim’s algorithm
  • Data compression techniques like Huffman code

Below diagram shows how an application use priority queue for the items consumed by the user.


Deque (Double Ended Queue)

In a double-ended queue, insertion and deletion can occur at both the queue's front and rear ends.


Basic Queue Operations in Queue Data Structure

Below are the basic queue operations in data structure:

Operation  Description
enqueue() Process of adding or storing an element to the end of the queue
dequeue() Process of removing or accessing an element from the front of the queue
peek() Used to get the element at the front of the queue without removing it
initialize() Creates an empty queue
isfull() Checks if the queue is full
isempty() Check if the queue is empty

Top Data Structure Interview Questions [DS and Algorthims]
Top Data Structure Interview Questions [DS and Algorthims]
Are you a fresh graduate or an experienced programmer who is appearing for a coding or software development job interview? If yes, then you must be aware that...read more

Top Online Courses to Learn Data Structures and Algorithms
Top Online Courses to Learn Data Structures and Algorithms
For every professional programmer, data structures and algorithms (DSA) are the two most fundamental areas to master. The more efficient you are in data structures and algorithms, the better you...read more

Now, let us understand in detail the two primary operations associated with Queue data structure – enqueue and dequeue.

Enqueue Operation

Below are the steps to enqueue (insert) data into a queue

  1. Check whether the queue is full or not.
  2. If the queue is full – print the overflow error and exit the program.
  3. If the queue is not full – increment the rear pointer to point to the next empty space.
  4. Else add the element in the position pointed by Rear.
  5. Return success.

Algorithm for Enqueue Operation



procedure enqueuer (data)
if queue is full
return overflow
endif
rear ← rear + 1
queue[rear] ← data
return true
end procedure
Copy code

Dequeue Operation

Below are the steps to perform the dequeue operation

  • Check whether the queue is full or not.
  • If the queue is empty – print the underflow error and exit the program.
  • If the queue is not empty – access the data where the front is pointing.
  • Else increment the front pointer to point to the next available data element.
  • Return success.

Algorithm for Dequeue Operation



procedure dequeue
if queue is empty
return underflow
end if data = queue[front]front ← front + 1return trueend procedure
Copy code

Implementation of Queue

A queue can be implemented in two ways:

  • Sequential allocation: It can be implemented using an array. A queue implemented using an array can organize only a limited number of elements.
  • Linked list allocation: It can be implemented using a linked list. A queue implemented using a linked list can organize unlimited elements.

Top Universities Offering Free Online Programming Courses
Top Universities Offering Free Online Programming Courses
Programming is one of the most essential skills to learn in today’s fast-changing world. With various online programming courses, knowing how to program becomes easier. Free coding courses can open...read more

Now, let’s move on to the application of queue.

Check out the best Data Structures and Algorithms Courses

Queue applications in Data Structure

A queue data structure is generally used in scenarios where the FIFO approach (First In First Out) has to be implemented. The following are some of the most common queue applications in data structure:

  • Managing requests on a single shared resource such as CPU scheduling and disk scheduling
  • Handling hardware or real-time systems interrupts
  • Handling website traffic
  • Routers and switches in networking
  • Maintaining the playlist in media players

Check out the Top Online Courses for IT Professionals

Conclusion

We hope you found this article useful. Gaining a solid understanding of the important concept of queue data structure, its types, implementation, and applications will help you to improve your skills to work on projects that require knowledge of queue data structures.

Recommended Reads

8 Most Important Data Structures Every Programmer Must Know
8 Most Important Data Structures Every Programmer Must Know
Knowledge of data structures and algorithms defines the programmers and their coding skills. Hence, it inevitably becomes essential to learn and implement the data structure for a software engineer. The...read more
Introduction to Backtracking
Introduction to Backtracking
In this article we are focusing on Introduction to Backtracking (with implementation), in which we have covered advantages and disadvantages as well as use cases of backtracking.
The Traveling Salesman Problem
The Traveling Salesman Problem
The Traveling Salesman Problem (TSP) is a classic optimization problem in computer science and mathematics. It is a problem that has been studied for over a century and has numerous...read more
Matching Strings: An Introduction to Knuth-Morris-Pratt (KMP) Algorithm
Matching Strings: An Introduction to Knuth-Morris-Pratt (KMP) Algorithm
Knuth-Morris-Pratt or KMP is a linear string matching algorithm with low time complexity of O(n+m), where n is the string length and m is the pattern length. In this article,...read more
Tree Traversal in Data Structure
Tree Traversal in Data Structure
Tree traversal is the process of systematically visiting each node in a tree data structure. It involves exploring the nodes in a specific order, such as inorder, preorder, or postorder,...read more
All About Circular Linked Lists
All About Circular Linked Lists
Have you ever wondered how data structures can efficiently manage cyclic data? A circular linked list offers an elegant solution. Unlike traditional linear linked lists, where the last node points...read more
Linked List Examples in C and Python
Linked List Examples in C and Python
In the previous articles, you have gone through Linked List and their types. In this article, let us discuss the Top 25 operations of Linked Lists and their examples in...read more

FAQs

With what data structure can a priority queue be implemented?

A priority queue can be implemented using a variety of data structures, such as a linked list, array, binary search tree, or heap. However, the heap is the most efficient data structure to implement a priority queue.

What is the queue data structure used for?

The queue data structure has a variety of applications. The queue data structure is used for serving requests on a single shared resource, i.e. when a single resource is shared among multiple consumers, such as printer and CPU task scheduling. The queue data structure is also used for managing the hardware or real-time systems interrupts, managing website traffic, and routers and switches in networks.

What is the difference between stack and queue in data structure?

The stack and queue are the linear data structures, in which the elements are stored sequentially and accessed in a single run. The main difference between stack and queue in data structure is that stack follows the LIFO principle whereas Queue follows the FIFO approach. In LIFO or Last In First Out, the last element inserted in the stack will be processed first while in FIFO or First In First Out, the first element in a queue will be processed first.

What is a double ended queue in data structure?

A double ended queue is a kind of queue data structure in which insertion and removal of elements can take place at both ends, i.e. front and back.

Does queue follow a FIFO or LIFO principle?

A queue data structure follows a FIFO (first in first out) data structure. In FIFO, the first element added to the queue will be removed first. LIFO (last in first out) is used by stack data structure.

How can I implement Queue Data structure?

You can either use arrays or linked Lists to represent and implement Queues in any programming language.
