According to Gauss’s law for magnetism, the net magnetic flux through any closed surface is zero.
It states that all magnetic field lines must enter and exit from a surface. In this way, it differs from electric charges, which can exist independently as positive and negative.
Magnetism is the force exerted by a magnet. It comes when the magnet attracts or repulses an object. For example, a magnet sticks to certain objects because the magnetic force or magnetism pulls it.
Abhishek and Deepak have two samples of magnetic materials X and Y. Experimentally they determine the following properties of the samples.
| | Retentivity | Coercivity |
| :--- | :--- | :--- |
| X | 1.5 T | 20 Am?¹ |
| Y | 1.0 T | 100 Am?¹ |
Considering this, choose best choice
<!-- [if !supportLineBreakNewLine]-->
<!--[endif]-->
Abhishek and Deepak have two samples of magnetic materials X and Y. Experimentally they determine the following properties of the samples.
| | Retentivity | Coercivity |
| :--- | :--- | :--- |
| X | 1.5 T | 20 Am?¹ |
| Y | 1.0 T | 100 Am?¹ |
Considering this, choose best choice
<!-- [if !supportLineBreakNewLine]-->
<!--[endif]-->
For permanent magnetic Y is good choice, As it has very high coercivity (comparitively)
Which of the following statements are correct?
(A) Electric monopoles do not exist whereas magnetic monopoles exist.
(B) Magnetic field lines due to a solenoid at its ends and outside can not be completely straight and confined.
(C) Magnetic field lines are completely confined within a toroid.
(D) Magnetic field lines inside bar magnet are not parallel.
(E) χ = -1 is the condition for a perfect diamagnetic material, where χ is its magnetic susceptibility.
Choose the correct answer from the options given below:
<!-- [if !supportLineBreakNewLine]-->
<!--[endif]-->
Which of the following statements are correct?
(A) Electric monopoles do not exist whereas magnetic monopoles exist.
(B) Magnetic field lines due to a solenoid at its ends and outside can not be completely straight and confined.
(C) Magnetic field lines are completely confined within a toroid.
(D) Magnetic field lines inside bar magnet are not parallel.
(E) χ = -1 is the condition for a perfect diamagnetic material, where χ is its magnetic susceptibility.
Choose the correct answer from the options given below:
<!-- [if !supportLineBreakNewLine]-->
<!--[endif]-->
- Concept involved: Electric and magnetic field lines
- Topic: Magnetics and Magnetic Material
- Difficulty level: Moderate
- Point of Error: Fact
Four identical long solenoids A, B, C and D are connected to each other as shown in the figure. If the magnetic field at the centre of A is 3T, the field at the centre of C would be: (Assume that the magnetic field is confined within the volume of respective solenoid).
Four identical long solenoids A, B, C and D are connected to each other as shown in the figure. If the magnetic field at the centre of A is 3T, the field at the centre of C would be: (Assume that the magnetic field is confined within the volume of respective solenoid).
Magnetic field at centre of a solenoid is proportional to the current through it. Current through C will be one-third of the current through A. So
Magnetic field at the centre of C = 3/3 = 1T.

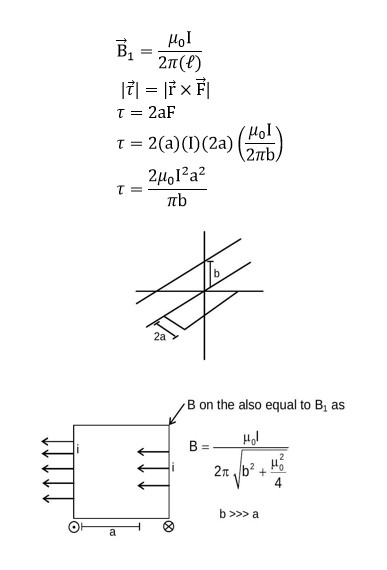

A square loop of side 2a, and carrying current I, is kept in XZ plane with its centre at origin. A long wire carrying the same current I is placed parallel to the z axis and passing through the point (0, b, 0), (b >> a). The magnitude of the torque on the loop about z - axis is given by:
<!-- [if !supportLineBreakNewLine]-->
<!--[endif]-->
A square loop of side 2a, and carrying current I, is kept in XZ plane with its centre at origin. A long wire carrying the same current I is placed parallel to the z axis and passing through the point (0, b, 0), (b >> a). The magnitude of the torque on the loop about z - axis is given by:
<!-- [if !supportLineBreakNewLine]-->
<!--[endif]-->
A paramagnetic sample shows a net magnetisation of 6 A/m when it is placed in an external magnetic field of 0.4 T at a temperature of 4 K. When the sample is placed in an external magnetic field of 0.3 T at a temperature of 24 K, then the magnetisation will be :
A paramagnetic sample shows a net magnetisation of 6 A/m when it is placed in an external magnetic field of 0.4 T at a temperature of 4 K. When the sample is placed in an external magnetic field of 0.3 T at a temperature of 24 K, then the magnetisation will be :
From aerie's law x = c/r
I = xH
I? = x? H?
I? = x? H?
I? /I? = x? H? /x? H?
I? /I? = T? H? /T? H? = (4 x 0.3)/ (24 x 0.4) = 1/8
I? = T? /8 = 6/8 = 0.75
A small bar magnet placed with its axis at 30° with an external field of 0.06 T experiences a torque of 0.018Nm. The minimum work required to rotate it from its stable to unstable equilibrium position is:
<!-- [if !supportLineBreakNewLine]-->
<!--[endif]-->
A small bar magnet placed with its axis at 30° with an external field of 0.06 T experiences a torque of 0.018Nm. The minimum work required to rotate it from its stable to unstable equilibrium position is:
<!-- [if !supportLineBreakNewLine]-->
<!--[endif]-->
τ? = μ? × B?
⇒ 0.018 = μ(0.06)(sin 30°)
⇒ μ = 0.6
⇒ Work = Uf – Ui
⇒ 2μB
⇒ 7.2 × 10?² J.
. Given a charge <!-- [if gte msEquation 12]>q I μ 0
<!-- [if !supportLineBreakNewLine]-->
<!--[endif]-->
. Given a charge <!-- [if gte msEquation 12]>
<!-- [if !supportLineBreakNewLine]-->
<!--[endif]-->
Dimension of charge: q = [AT]
Dimension of current I = [A]
Dimension of permeability μ? = [MLT? ²A? ²]
Dimension of momentum: [MLT? ¹]
Let P = q? μ? I? = [AT]? [MLT? ²A? ²]? [A]?
MLT? ¹ = M? L? T? ²? A? ²?
Comparing powers:
y = 1
x - 2y = -1 ⇒ x - 2 (1) = -1 ⇒ x = 1
x - 2y + z = 0 ⇒ 1 - 2 (1) + z = 0 ⇒ z =
