Physics NCERT Exemplar Solutions Class 11th Chapter Three

This is a multiple choice answer as classified in NCERT Exemplar

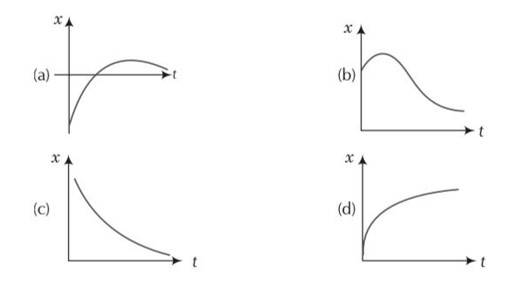

(b) To making it vanish one part must cancel other part which is only possible in graph b.

As there are opposite velocities in the interval 0 to T hence average velocity can vanish in b .

This is a short answer type question as classified in NCERT Exemplar

let initial velocity V_i

Distance travelled in time t= x_i

For the graph

tan $\theta$ = v_i/x_i= v_i-v/x

V= -v_ix/x_i+V_o

Acceleration, a = dv/dx= -v_idx/x_idt

So a= -v_iv/x_i= $\frac{{-v}_i}{x_i}(\frac{{-v}_i}{x_i}x+v_i)$

This is a short answer type question as classified in NCERT Exemplar

When the ball dropped from the building u₁=0, u₂=40m/s

Velocity of the dropped ball after time t

V₁=u₁+gt

V₁ = gt

For ball thrown up u₂=40m/s

Velocity of the ball after time t

V₂=u₂-gt

=40-gt

Relative velocity =v₁-v₂

=gt- [-40-gt]=40m/s

This is a short answer type question as classified in NCERT Exemplar

When the ball dropped from the building u₁=0, u₂=40m/s

Velocity of the dropped ball after time t

V₁=u₁+gt

V₁ = gt

For ball thrown up u₂=40m/s

Velocity of the ball after time t

V₂=u₂-gt

=40-gt

Relative velocity =v₁-v₂

=gt- [-40-gt]=40m/s

This is a short answer type question as classified in NCERT Exemplar

speed of first car = 18km/h

Speed of second car = 27km/hr relative with respect to each other is 18+27=45km/h

Distance between cars = 36km

Time = $\frac{distancebetweencars}{relativespeed}=$ 36/45=0.8h

Distance covered by bird = 36 (0.8)=28.8km

This is a short answer type question as classified in NCERT Exemplar

(a) x (t)=x₀ (1- $e^{-\gamma t}$ )

V (t)=dx/dt= x (t)=x_{0 $\gamma$} ( $e^{-\gamma t}$ )

A (t)= x ( $\infty ,$ t)=x₀ ( ${\gamma }^2{e}^{-\gamma t}$ )

(b) when t=o x (t)= x (t)=x₀ (1- $e^{-0}$ )= x (t)=x₀ (1-1)=0

x (t) is maximum when t= $\infty$

x (t) is maximum when t= $0$

v (t) is maximum when t= $0$ , v (0)=x_{0 $\gamma$}

v (t) is maximum when t= $\infty ,$  v ( $\infty$ )=0

a (t) is maximum when t= $\infty$ , a ( $\infty$ )=0

a (t) is maximum when t= $0$ , a ( $0$ )=-x_{0 $\gamma$} ²

This is a short answer type question as classified in NCERT Exemplar

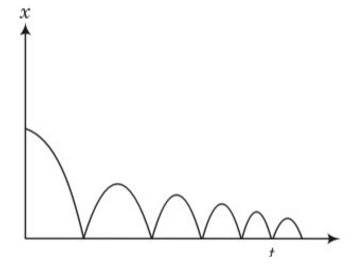

It is clear from the graph that displacement x is positive throughout . ball is dropped from height and its velocity increases in downward direction due to gravity pull. In this condition v isnegative but acceleration of the ball equal to acceleration due to gravity.

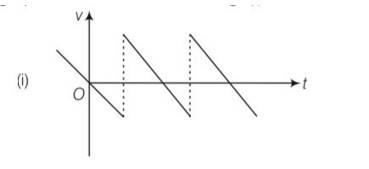

velocity time graph

Acceleration time graph

This is a short answer type question as classified in NCERT Exemplar

When speed becomes constant then acceleration will be zero

a=dv/dt=0

But here a=g-bv

Clearly from above equation as speed increases acceleration will decrease . at a certain speed say v_o, acceleration will be zero and speed will remain constant.

Hence So g=bv

so v= g/b

This is a short answer type question as classified in NCERT Exemplar

x (t)=A+B

Let A>B and

Now velocity is equal to x (t)=dx/dt=-B

So a (t)= dv/dt= B

Above condition are satisfied by the equation.

This is a short answer type question as classified in NCERT Exemplar

(a) The equation we use here is x= 1-sint

So velocity = dx/dt=1-cost

Acceleration =sint

When t=o x=o

When t=, x=

When t=0.x= 2

(b) x=sint so velocity becomes v=cost as displacement and velocity contain sin and cos so equation is periodic.
