Physics NCERT Exemplar Solutions Class 11th Chapter Three

This is a short answer type question as classified in NCERT Exemplar

If effect of gravity is neglected then ball moving uniformly turned back with same speed when a ball hit it. Acceleration of the ball is zero just before it hits the bat and due  to the repulsive force it gets accelerated.

This is a short answer type question as classified in NCERT Exemplar

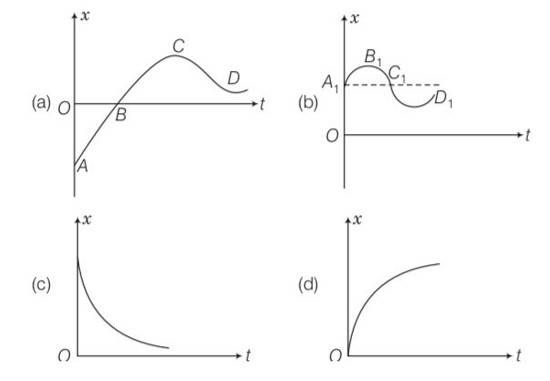

We have to analyse slope of each curve i.e= dx/dt . for peak values dx/dt will be zero as x is maximum at peak points.

For graph (a) there is appoint for which displacement is zero so a matches with (iii)

In graph b, x is positive throughout and at point B, V=dx/dt=0

Since at point of curvature changes a=0, so b matches with (ii)

displacement is zero in only first graph so it matches with the (iii) point.

And slope of d graph v=dx/dt is positive so v>0 so acceleration will be negative so matches with I but in graph c it matches with iv as its slope is negative.

This is a long answer type question as classified in NCERT Exemplar

let speed of two balls be V₁and V₂

Where v₁=2v and v₂=v and y₁and y₂ be the distance covered

So y₁= $\frac{v_1^2}{2g}=\frac{4v^2}{2g}$ and y₂= $\frac{v_2^2}{2g}=\frac{v^2}{2g}$

So y₁-y₂= 15

$\frac{3v^2}{2g}=15$

V²= $\sqrt[]{5*2*10}=\frac{10m}{s}$

So clearly we can say v₁=20 and v₂=10

And y₁=20m and y₂=5m

If t₂ is the time taken by ball 2 through a distance of 5m, y₂=v₂t-1/2gt²

5=10t₂-5t₂² so t₂ will be 15

Then time covered by ball 1 in 2 sec between two throws = t₁-t₂= 2-1=1s

This is a long answer type question as classified in NCERT Exemplar

(a)  for maximum velocity dv/dt=0

d/dt (6t-2t²)=0

6-4t=0 t= 6/4=1.5s

(b) v=6t-2t²

ds/dt=6t-2t²

ds=6t-2t²dt

distance in 3s, S= ${\int }_0^3\left(6t-{2t}^2\right)dt=[3t^2-\frac{2}{3}{t}^3]$ ³₀

s= 27-18=9m

average velocity = distance /time =9/3 = 3m/s

x= 6t-2t²

3=6t-2t²

After solving we get t= 9/4s approx.

(c) in periodic motion when velocity is zero

0=6t-2t²

0=t (6-2t)

So t=0, 3 sec

(d) distance covered from 0 to 3s=9m

distance covered in 3 to 6s= ${\int }_3^6\left(18-9t+t^2\right)dt$

S= (18t- $\frac{9t^2}{2}+\frac{t^3}{3}$ )⁶

S= 108-9 (18)+ $\frac{6^3}{3}-18\left(3\right)+\frac{9}{2}\left(9\right)-\frac{27}{3}$

S= -4.5m

So total distance covered = 9+ (-4.5)=4.5m

No of cycles covered in that distance =20/4.5=4.44approx

This is a long answer type question as classified in NCERT Exemplar

speed of car and truck = 72km/h = 72 (5/18) =20m/s

V= u+at

0=20+a (5) so a=-4m/s²

But retarted acceleration will be v=u+at

0=20+a (3)

So a= $\frac{20}{3}\left(t-0.5\right)$ -20/3m/s²

We also need to consider human response time = 0.5 s

V=u-at (for retarded motion)

V= 20- $\frac{20}{3}\left(t-0.5\right)$ ….1

V_t=20-4t ….2

From 1 and 2

20-=20-4t

After solving we get t= 5/4s

Distance travelled by truck in time t, S=ut+1/2at²

= 20 $*\frac{5}{4}+\frac{1}{2}\left(-4\right)*{\left(\frac{5}{4}\right)}^2=21.875m$

To avoid the bump onto the truck car must maintain distance = 23.125-21.875=1.250m

This is a long answer type question as classified in NCERT Exemplar

(a) velocity attained by a falling rain drop will be = $\sqrt[]{2gh}=\sqrt[]{2*10*1000}$

= $100\sqrt[]{2}m{s}^{-1}=\frac{510km}{h}$

(b) diameter of the rain drop = 2r=4mm

Radius = 2mm= 2 $*{10}^{-3}m$

Mass of rain drop = V $*\rho =\frac{4}{3}\pi r^3\rho =\frac{4}{3}*\frac{22}{7}*{\left(2*{10}^{-3}\right)}^3*{10}^3=3.4*{10}^{-5}kg$

Momentum of rain drop= mv= 3.4 $*{10}^5*100\sqrt[]{2}=5*{10}^{-3}kgm/s$

(c) time ,t = d/v= $\frac{4*{10}^{-3}}{100\sqrt[]{2}}=0.028*{10}^{-3}s$

(d) force exerted, F = change in momentum /time=

(e) area = $\pi R^2=\pi *{\frac{1}{2}}^2=\frac{11}{14}=0.8m^2$

number of drops striking the the umbrella with separation of 5 $*{10}^{-2}$

so net force = $\frac{0.8}{{(5*{10}^{-2})}^2}*168=53760N$

For numerical problems, start by finding the given data and know what needs to be calculated. To visualize the motion, it is advisable to use a diagram. Based on if the acceleration is uniform, choose the appropriate kinematic equations. Also, be careful with the unit conversions and sign conventions. Solve the numerical problems by following the step-by-step approach and at the end double-check your answer for accuracy.

Yes, if one practices from the NCERT Exemplar, they can score high in the CBSE Board exams and entrance exams like NEET and JEE. The exemplar questions include advanced and application-based questions which deepen students' understanding of key concepts. It contains information beyond the NCERT textbook and offers concept clarity to students. Practicing from the exemplar helps in improving the problem-solving skills of the students.

Motion in a Straight Line focuses on the rectilinear motion, which is the motion of objects along a single straight path. It covers key concepts such as speed, displacement, acceleration, velocity, and motion graphs. It helps students understand more complex types of motions.
