New question posted

4 months ago

physics ncert solutions class 11th Physics NCERT Exemplar Solutions Class 11th Chapter Ten

Surface tension is exhibited by liquids due to force of attraction between molecules of the liquid. The surface tension decreases with increase in temperature and vanishes at boiling point. Given that the latent heat of vaporisation for water Lv = 540 k cal kg^-1, the mechanical equivalent of heat J = 4.2 J cal^-1, density of water ρ_w = 103 kg/m³, Avagadro’s No N_A = 6.0 × 10²⁶ k mole^-1 and the molecular weight of water MA = 18 kg for 1 k mole.

(a) Estimate the energy required for one molecule of water to evaporate.

(b) Show that the inter–molecular distance for water is d= ${[\frac{M_{A}}{N_{A}} \times \frac{1}{ρ_{w}}]}^{1 / 3}$ and find its value.

(c) 1 g of wat

...more

(a) Estimate the energy required for one molecule of water to evaporate.

(b) Show that the inter–molecular distance for water is d= ${[\frac{M_{A}}{N_{A}} \times \frac{1}{ρ_{w}}]}^{1 / 3}$ and find its value.

(c) 1 g of water in the vapor state at 1 atm occupies 1601cm³. Estimate the intermolecular distance at boiling point, in the vapour state.

(d) During vaporisation a molecule overcomes a force F, assumed constant, to go from an inter-molecular distance d to d′. Estimate the value of F.

(e) Calculate F/d, which is a measure of the surface tension.

less

0 Follower 3 Views

New answer posted

4 months ago

physics ncert solutions class 11th Physics NCERT Exemplar Solutions Class 11th Chapter Ten

(a) Pressure decreases as one ascends the atmosphere. If the density of air is ρ, what is the change in pressure dp over a differential height dh?

(b) Considering the pressure p to be proportional to the density, find the pressure p at a height h if the pressure on the surface of the earth is p₀.

(c) If P_o = 1.03*10⁵ N m^-2, ρ_o = 1.29 kg m^-3 and g = 9.8 m s^-2, at what height will the pressure drop to (1/10) the value at the surface of the earth?

(d) This model of the atmosphere works for relatively small distances. Identify the underlying assumption that limits the model.

0 Follower 3 Views

Payal Gupta

Contributor-Level 10

This is a long answer type question as classified in NCERT Exemplar

(a) consider a horizontal parcel of air with cross section A and height dh

Let the pressure on the top surface and bottom surface be P and p+dp. If the parcel is in equilibrium , then the net upward force must be balanced by the weight

(P+dP)-PA=- $ρ A d h * g$

dP= - $ρ g d h$

negative sign shows that pressure decreases with height.

(b) let $ρ$ _o be the density of air on the surface of earth.

As per question , pressure $\propto$ density

$\frac{P}{P_{o}} = \frac{ρ}{ρ_{0}}$

$ρ = \frac{ρ_{o}}{P_{o}} P$

dP= - $\frac{ρ_{o} g}{P_{o}} P d h$

$\frac{d P}{p} = - \frac{ρ_{o} g d h}{P_{o}}$

$\int_{P_{o}}^{P} \frac{d P}{P} = - \frac{ρ_{o} g}{P_{o}} \int_{0}^{h} d h$

In $\frac{P}{P_{o}} = - \frac{ρ_{o} g h}{P_{o}}$

P=P_oe(- $\frac{ρ_{o} g h}{P_{o}}$ )

(c) as P =P_{o
$e^{\frac{- ρ_{o} g h}{P_{o}}}$}

in $\frac{P}{P_{o}} = - \frac{ρ_{o} g h}{P_{o}}$

p=1/10 P_o

in( $\frac{\frac{1}{10} P_{o}}{P_{o}}$ ) =- $\frac{- ρ_{o} g h}{P_{o}}$

in1/10 =- $\frac{ρ_{o} g}{P_{o}} h ρ_{0}$

h=- $\frac{P_{o}}{ρ_{o} g}$ in1/10= - $\frac{P_{o}}{P_{o} g} i n (10)$ ^-1= $\frac{P_{o}}{P_{o} g} i n (10)$

= $\frac{P_{o}}{P_{o} g} * 2.303$

= $\frac{1.013 * 10^{5}}{1.22 * 9.8} * 2.303 = 0.16 * 10^{5} m$

= 16 $*$ 10³m

(d) we know that

P $\propto ρ$ , temperature remain

...more

This is a long answer type question as classified in NCERT Exemplar

(a) consider a horizontal parcel of air with cross section A and height dh

Let the pressure on the top surface and bottom surface be P and p+dp. If the parcel is in equilibrium , then the net upward force must be balanced by the weight

(P+dP)-PA=- $ρ A d h * g$

dP= - $ρ g d h$

negative sign shows that pressure decreases with height.

(b) let $ρ$ _o be the density of air on the surface of earth.

As per question , pressure $\propto$ density

$\frac{P}{P_{o}} = \frac{ρ}{ρ_{0}}$

$ρ = \frac{ρ_{o}}{P_{o}} P$

dP= - $\frac{ρ_{o} g}{P_{o}} P d h$

$\frac{d P}{p} = - \frac{ρ_{o} g d h}{P_{o}}$

$\int_{P_{o}}^{P} \frac{d P}{P} = - \frac{ρ_{o} g}{P_{o}} \int_{0}^{h} d h$

In $\frac{P}{P_{o}} = - \frac{ρ_{o} g h}{P_{o}}$

P=P_oe(- $\frac{ρ_{o} g h}{P_{o}}$ )

(c) as P =P_{o
$e^{\frac{- ρ_{o} g h}{P_{o}}}$}

in $\frac{P}{P_{o}} = - \frac{ρ_{o} g h}{P_{o}}$

p=1/10 P_o

in( $\frac{\frac{1}{10} P_{o}}{P_{o}}$ ) =- $\frac{- ρ_{o} g h}{P_{o}}$

in1/10 =- $\frac{ρ_{o} g}{P_{o}} h ρ_{0}$

h=- $\frac{P_{o}}{ρ_{o} g}$ in1/10= - $\frac{P_{o}}{P_{o} g} i n (10)$ ^-1= $\frac{P_{o}}{P_{o} g} i n (10)$

= $\frac{P_{o}}{P_{o} g} * 2.303$

= $\frac{1.013 * 10^{5}}{1.22 * 9.8} * 2.303 = 0.16 * 10^{5} m$

= 16 $*$ 10³m

(d) we know that

P $\propto ρ$ , temperature remains constant only near the surface of the earth , not at greater heights.

less

0 0

New answer posted

4 months ago

physics ncert solutions class 11th Physics NCERT Exemplar Solutions Class 11th Chapter Nine

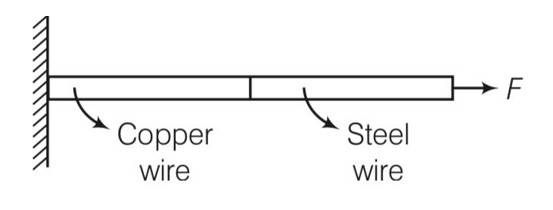

A copper and a steel wire of the same diameter are connected end to end. A deforming force F is applied to this composite wire which causes a total elongation of 1cm. The two wires will have

(a) The same stress.

(b) Different stress.

(c) The same strain.

(d) Different strain.

0 Follower 3 Views

Payal Gupta

Contributor-Level 10

This is a multiple choice answer as classified in NCERT Exemplar

(a), (d) for steel wire Y_steel= stress/strain= $\frac{f / A}{s t a r i n}$

When F and A are same for both the wires . hence stress will be same for both the wire

(Strain)_steel= stress/Y_steel and strain_copper=stress/Y_copper

Y_{steel
$\neq$}Y_copper

hence they both have different starin

0 0

New answer posted

4 months ago

physics ncert solutions class 11th Physics NCERT Exemplar Solutions Class 11th Chapter Nine

For an ideal liquid

(a) The bulk modulus is infinite.

(b) The bulk modulus is zero.

(c) The shear modulus is infinite.

(d) The shear modulus is zero.

0 Follower 2 Views

Payal Gupta

Contributor-Level 10

This is a multiple choice answer as classified in NCERT Exemplar

(a), (d) An ideal liquid is not compressible

Hence $?$ V=0

Bulk modulus B= strss /volumetric strain= $\frac{\frac{F}{A}}{\frac{? V}{V}} = \infty$

Compressibility K= 1/B=1/ $\infty = 0$

As there is no tangential force exists. So shear strain =0

0 0

New answer posted

4 months ago

physics ncert solutions class 11th Physics NCERT Exemplar Solutions Class 11th Chapter Nine

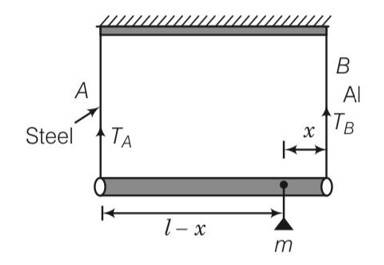

A rod of length l and negligible mass is suspended at its two ends by two wires of steel (wire A) and aluminium (wire B) of equal lengths (Fig. 9.4). The cross-sectional areas of wires A and B are 1.0 mm2 and 2.0 mm2, respectively. Y_Al=70 $* 10^{9} N m^{- 2}$ and Y_steel= 200 $* 10^{9} N m^{- 2}$

(a) Mass m should be suspended close to wire A to have equal stresses in both the wires

(b) Mass m should be suspended close to B to have equal stresses in both the wires

(c) Mass m should be suspended at the middle of the wires to have equal stresses in both the wires

(d) Mass m should be suspended close to wire A to have equal strain in both wires

0 Follower 11 Views

Payal Gupta

Contributor-Level 10

This is a multiple choice answer as classified in NCERT Exemplar

(b), (d) Let mass m is placed at x from the end B respectively.

T_A and T_B be the tensions in wire A and wire B respectively.

For the rotational equilibrium of the system,

\sum τ = 0

T_Bx-T_A(l-x)=0

$\frac{T_{B}}{T_{A}}$ = $\frac{l - x}{x}$

Stress in wire A = S_A= $\frac{T_{A}}{a_{A}}$

Stress in wire B = S_B= $\frac{T_{B}}{a_{B}}$ where a are the area of wire

We know that a_B=2a_A

Now for equal stress

S_A=S_B

$\frac{T_{A}}{a_{A}} = \frac{T_{B}}{a_{B}}$

$\frac{T_{B}}{T_{A}} = 2$

$\frac{l - x}{x} = 2$

So x =l/3 and l-x= 2l/3

Hence mass m should placed to B.

For equal strain

Strain_A= Strain_B

$\frac{Y_{A}}{S_{A}} = \frac{Y_{B}}{S_{B}}$

$\frac{Y_{s t e e l}}{Y_{A l}} = \frac{T_{A}}{T_{B}} * \frac{a_{B}}{a_{A}} = \frac{x}{l - x} (\frac{2 a_{A}}{a_{A}})$

$\frac{200 * 10^{9}}{70 * 10^{9}} = \frac{x}{l - x}$

After solving we get x= x= 10l/17

l-x=l=10l/17=7l/17

0 0

New answer posted

4 months ago

physics ncert solutions class 11th Physics NCERT Exemplar Solutions Class 11th Chapter Nine

A wire is suspended from the ceiling and stretched under the action of a weight F suspended from its other end. The force exerted by the ceiling on it is equal and opposite to the weight.

(a) Tensile stress at any cross section A of the wire is F/A

(b) Tensile stress at any cross section is zero

(c) Tensile stress at any cross section A of the wire is 2F/A

(d) Tension at any cross section A of the wire is F

0 Follower 3 Views

Payal Gupta

Contributor-Level 10

This is a multiple choice answer as classified in NCERT Exemplar

(a), (d) Forces at cross section is F.

Now applying formula . stress = tension/area=F/A

Tension = applied force =F

0 0

New answer posted

4 months ago

physics ncert solutions class 11th Physics NCERT Exemplar Solutions Class 11th Chapter Nine

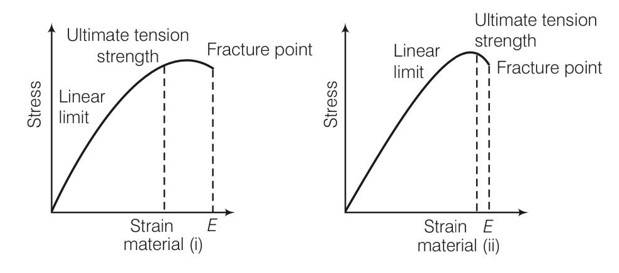

The stress-strain graphs for two materials are shown in Fig.9.3 (assume same scale).

(a) Material (ii) is more elastic than material (i) and hence material (ii) is more brittle.

(b) Material (i) and (ii) have the same elasticity and the same brittleness.

(c) Material (ii) is elastic over a larger region of strain as compared to (i).

(d) Material (ii) is more brittle than material (i).

0 Follower 6 Views

Payal Gupta

Contributor-Level 10

This is a multiple choice answer as classified in NCERT Exemplar

(c), (d) The ultimate tensile strength for material ii is greater hence material ii is elastic over larger region as compared to material (i) for material (ii) fracture point is nearer, hence it is more brittle.

0 0

New answer posted

4 months ago

physics ncert solutions class 11th Physics NCERT Exemplar Solutions Class 11th Chapter Nine

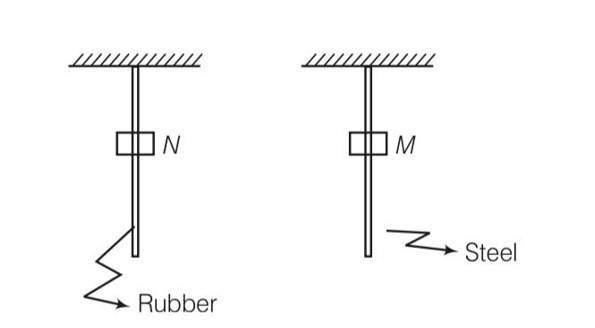

Consider two cylindrical rods of identical dimensions, one of rubber and the other of steel. Both the rods are fixed rigidly at one end to the roof. A mass M is attached to each of the free ends at the centre of the rods.

(a) Both the rods will elongate but there shall be no perceptible change in shape.

(b) The steel rod will elongate and change shape but the rubber rod will only elongate.

(c) The steel rod will elongate without any perceptible change in shape, but the rubber rod will elongate and the shape of the bottom edge will change to an ellipse.

(d) The steel rod will elongate, without any perceptible change in shape, but the r

...more

0 Follower 2 Views

Payal Gupta

Contributor-Level 10

This is a multiple choice answer as classified in NCERT Exemplar

(d) a mass M is attached at the centre. As the mass is attached to both the rods, both rod will be elongated, but due to different elastic properties of material rubber changes shape also.

0 0

New answer posted

4 months ago

physics ncert solutions class 11th Physics NCERT Exemplar Solutions Class 11th Chapter Nine

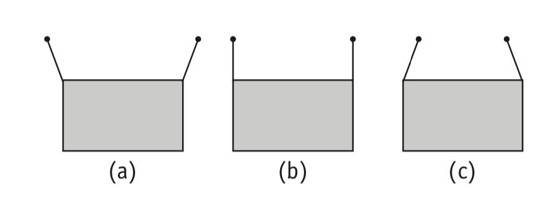

A rectangular frame is to be suspended symmetrically by two strings of equal length on two supports (Fig. 9.2). It can be done in one of the following three ways The tension in the strings will be

(a) The same in all cases

(b) Least in (a)

(c) Least in (b)

(d) Least in (c)

0 Follower 4 Views

Payal Gupta

Contributor-Level 10

This is a multiple choice answer as classified in NCERT Exemplar

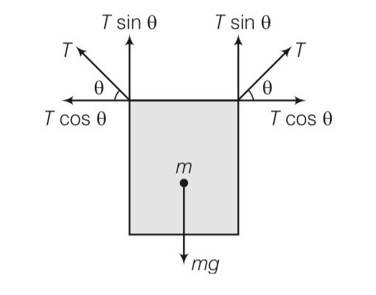

2Tsin $θ$ =mg

Total horizontal forces = Tcos $θ - T c o s θ = 0$

T=mg/2sin $θ$

As mg is constant T $\propto \frac{1}{s i n θ}$

T_max= mg/sin $θ$ _min

Sin $θ$ _min=0, $θ$ _min= 0

T_min=mg/2sin $θ$ _max

_{$s i n θ$
max}= 1, $θ$ =90⁰

0 0

New answer posted

4 months ago

physics ncert solutions class 11th Physics NCERT Exemplar Solutions Class 11th Chapter Nine

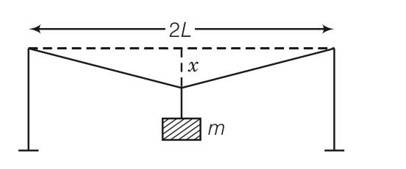

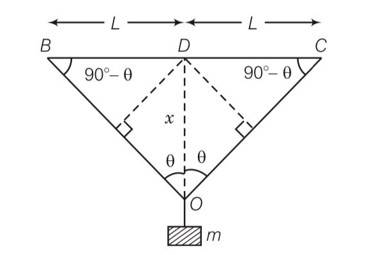

A mild steel wire of length 2L and cross-sectional area A is stretched, well within elastic limit, horizontally between two pillars (Fig. 9.1). A mass m is suspended from the midpoint of the wire. Strain in the wire is

(a)

(b) x/L

(c) x²/2L

(d)
