New answer posted

2 months ago

Electrostatic Potential and Capacitance Class 12th

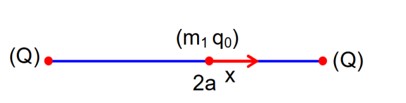

Two identical positive charge Q each are fixed at a distance of '2a' apart from each other. Another point charge q₀ with mass 'm' is placed at midpoint between two fixed charges. For a small displacement along the line joining the fixed charges, the charge q₀ executes SHM. The time period of oscillation of charge q₀ will be:

0 Follower 6 Views

alok kumar singh

Contributor-Level 10

$F_{R} = {\frac{k Q q_{0}}{{(a - x)}^{2}} - \frac{k Q q_{0}}{{(a + x)}^{2}}}$

$= - k Q q_{0} {\frac{a^{2} + x^{2} + 2 a x - a^{2} - x^{2} + 2 a x}{(a^{2} - x^{2})}}$

$F_{R} = - \frac{k Q q_{0} (4 a x)}{{(a^{2} - x^{2})}^{2}}$

$T = 2 π \sqrt[]{\frac{a^{3} m}{4 k Q q_{0}} = \sqrt[]{\frac{4 π^{2} a^{3} m * 4 π ε_{0}}{4 Q q_{0}}}} = \sqrt[]{\frac{4 π^{3} ε_{0} m a^{3}}{Q q_{0}}}$ .

0 0

New answer posted

2 months ago

Electrostatic Potential and Capacitance Class 12th

Two identical thin metal plates has charge q₁ and q₂ respectively such that q₁ > q₂. The plates were brought close to each other to from a parallel plate capacitor of capacitance C. The potential difference between them is

0 Follower 2 Views

Payal Gupta

Contributor-Level 10

V = $\frac{q_{(c a p a c i t a n c e)}}{C} = \frac{q_{1} - q_{2}}{2 c}$

0 0

New answer posted

2 months ago

Electrostatic Potential and Capacitance Class 12th

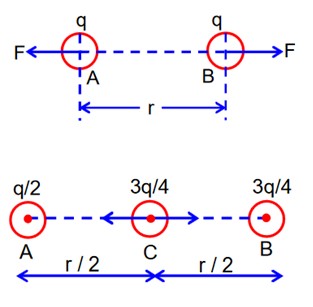

Two identical metallic spheres A and B when placed at certain distance in air repel each other with force of F. Another identical uncharged sphere C is first place in contact with A and then in contact with B and finally placed at midpoint between sphere A and B. The force experienced by sphere C will be

0 Follower 6 Views

Payal Gupta

Contributor-Level 10

For sphere 'C' after contacting with 'A'. q_A = q_C = $\frac{q}{2} .$

offer contacting with 'B'. q_B = q_C = $\frac{3 q}{4}$

$F_{N e t} = | F_{1} - F_{2} |$

F₂ = $\frac{K \cdot 3 q^{2} * 4}{r^{2} 8} = \frac{3}{2} \frac{k q^{2}}{r^{2}}$

$F_{1} = \frac{9 k q^{2} * 4}{16 r^{2}} = \frac{9 k q^{2}}{4 r^{2}} = \frac{9}{4} F$

$∴ F_{N e t} = | \frac{9}{4} F - \frac{3}{2} F |$

= $\frac{9 - 6}{4} F = \frac{3}{4} F$

0 0

New answer posted

2 months ago

Electrostatic Potential and Capacitance Class 12th

A capacitor of capacitance 50 pF is charged by 100 V source. It is then connected to another uncharged identical capacitor. Electrostatic energy loss in the process is _________nJ.

0 Follower 2 Views

Vishal Baghel

Contributor-Level 10

Q = CV

= 50 * 10^-12 * 100

= 5 * 10^-12 * 10³

Q = 5 * 10^-9C

U_i (Initial Energy)

= $\frac{Q^{2}}{2 C} = \frac{25 * 1 0^{- 18}}{2 * 50 * 1 0^{- 12}}$

= $\frac{1}{4} * 1 0^{- 6}$

Now capacitor is connected to an identical uncharged capacitor

kvL

$\frac{Q_{1}}{C} = \frac{Q_{2}}{C} = 0$

q₁ = q₂

Initial change Q₁ + Q₂ = Q

$\Rightarrow 2 Q_{1} = Q$

$Q_{1} = \frac{Q}{2}$

$u_{F} = \frac{Q_{1}^{2}}{2 C} + \frac{Q_{1}^{2}}{2 C}$

$= \frac{{(\frac{Q}{2})}^{2}}{2 C} + \frac{{(Q / 2)}^{2}}{2 C}$

$= 2 * \frac{Q^{2}}{4 * 2 C}$

...more

Q = CV

= 50 * 10^-12 * 100

= 5 * 10^-12 * 10³

Q = 5 * 10^-9C

U_i (Initial Energy)

= $\frac{Q^{2}}{2 C} = \frac{25 * 1 0^{- 18}}{2 * 50 * 1 0^{- 12}}$

= $\frac{1}{4} * 1 0^{- 6}$

Now capacitor is connected to an identical uncharged capacitor

kvL

$\frac{Q_{1}}{C} = \frac{Q_{2}}{C} = 0$

q₁ = q₂

Initial change Q₁ + Q₂ = Q

$\Rightarrow 2 Q_{1} = Q$

$Q_{1} = \frac{Q}{2}$

$u_{F} = \frac{Q_{1}^{2}}{2 C} + \frac{Q_{1}^{2}}{2 C}$

$= \frac{{(\frac{Q}{2})}^{2}}{2 C} + \frac{{(Q / 2)}^{2}}{2 C}$

$= 2 * \frac{Q^{2}}{4 * 2 C}$

$U_{f} = \frac{Q_{2}}{4 * 2 C}$

Loss in energy = U_i = U_t

= $\frac{Q^{2}}{2 C} - \frac{Q^{2}}{4 C}$

= $\frac{Q^{2}}{4 C}$

= $\frac{1}{2} [\frac{Q^{2}}{2 C}]$

$\frac{1}{2} * 0.25 * 1 0^{- 6}$

= 125 * 10^-9

= 125 nJ

less

0 0

New answer posted

2 months ago

Electrostatic Potential and Capacitance Class 12th

A force of 10 N acts on a charged particle placed between two plates of a charged capacitor. If one plate of capacitor is removed, then the force acting on that particle will be.

0 Follower 3 Views

Vishal Baghel

Contributor-Level 10

$F = q E [E = \frac{σ}{ε_{0}}]$

$F = \frac{q σ}{\in_{0}} = 10 N$

Final case – Now one plate is removed, Electric field will becomes half; So, force will become half.

$F' = \frac{10}{2} = 5 N$

0 0

New answer posted

2 months ago

Electrostatic Potential and Capacitance Class 12th

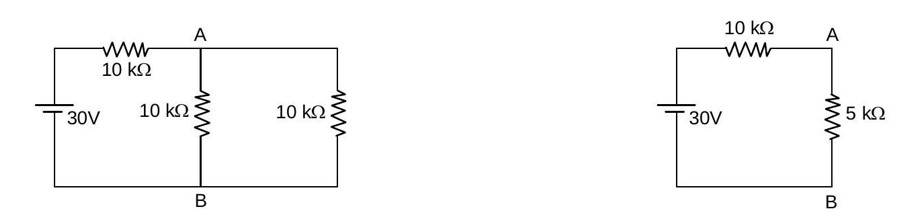

In the figure, potential difference between $A$ and $B$ is:

0 Follower 1 View

alok kumar singh

Contributor-Level 10

In forward bias diode act as a short circuit wire. Hence, the equivalent circuit is now.

So, $_{} \frac{}{}$ $V_{a b} = \frac{30}{5 + 10} * 5 = 10 V$

$50.00$

0 0

New answer posted

2 months ago

Electrostatic Potential and Capacitance Class 12th

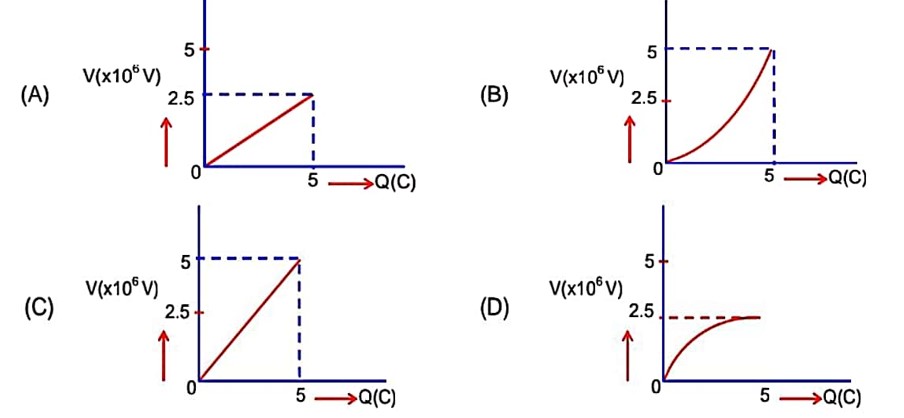

A condenser of $2 μ F$ capacitance is charged steadily from 0 to 5 C. Which of the following graph represents correctly the variation of potential difference (V) across it's plates with respect to the charge (Q) on the condenser?

0 Follower 2 Views

Vishal Baghel

Contributor-Level 10

Q = CV

$V = \frac{Q}{C}$

Straight line with slope = $\frac{1}{C ?}$ $\frac{}{}$

$S l o p e = \frac{1}{C} = \frac{1}{2 * 1 0^{- 6}} = 5 * 1 0^{5}$

0 0

New answer posted

2 months ago

Electrostatic Potential and Capacitance Class 12th

Which of the following physical quantities have the same dimensions?

0 Follower 2 Views

Vishal Baghel

Contributor-Level 10

Electric Displacement

$\begin{array}{l} \vec{D} = \in o \vec{E} \\ [D] = [\in_{0} \vec{E}] = [\in_{0} \frac{σ}{\in_{0}}] \\ [D] = [σ] \end{array}$

Electric displacement $(\vec{D})$ and surface change density

0 0

New answer posted

2 months ago

Electrostatic Potential and Capacitance Class 12th

Two capacitors, each having capacitance $40 μ F$ are connected in series. The space between one of the capacitors is filled with dielectric material of constant K such that the equivalence capacitance of the system became $24 μ F$ . The value of K will be:

0 Follower 2 Views

Vishal Baghel

Contributor-Level 10

$C_{e q} = \frac{C_{1} C_{2}}{C_{1} + C_{2}} = \frac{40 * 40 k}{40 (1 + k)} = 24$

$\begin{array}{l} \Rightarrow 40 k = 24 + 24 k \\ \Rightarrow 16 k = 24 \end{array}$

$k = \frac{24}{16} = \frac{3}{2} = 1.5$

0 0

New answer posted

2 months ago

Electrostatic Potential and Capacitance Class 12th

In the given figure, the value of V₀ will be ________ V.

0 Follower 3 Views

Vishal Baghel

Contributor-Level 10

K V L Loop 1

6 - l * 1 -l₁ * 1 - 4 = 0

2 = l + l₁ - (i)

K V L Loop 2

4 + l₁ * 1 - (l – l₁) * 1 – 2 = 0

$\Rightarrow 2 + l_{1} - l = 0$

l = 2 + 2l₁ &nb

...more

K V L Loop 1

6 - l * 1 -l₁ * 1 - 4 = 0

2 = l + l₁ - (i)

K V L Loop 2

4 + l₁ * 1 - (l – l₁) * 1 – 2 = 0

$\Rightarrow 2 + l_{1} - l = 0$

l = 2 + 2l₁ - (ii)

from (i) & (ii)

l₁ = 0 v₀ = 4

less

0 0
