An LCR circuit contains resistance of 110 and a supply of 220 V at 300 rad/s angular frequency. If only capacitance is removed from the circuit, current lags behind the voltage by 45°. If on the other hand, only inductor is removed the current leads by 45° with the applied voltage. The rms current flowing in the circuit will be
An LCR circuit contains resistance of 110 and a supply of 220 V at 300 rad/s angular frequency. If only capacitance is removed from the circuit, current lags behind the voltage by 45°. If on the other hand, only inductor is removed the current leads by 45° with the applied voltage. The rms current flowing in the circuit will be

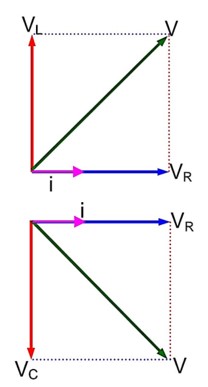

When capacitor is removed
tan 45° =
When inductor is removed.

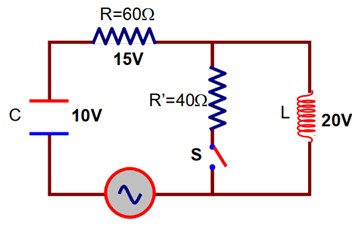

A capacitor is connected to a source as shown in figure. The peak current in the circuit is nearly ( ):

A capacitor is connected to a source as shown in figure. The peak current in the circuit is nearly ( ):

Capacitive Reactance
In an ideal transformer, the turns ratio is . The ratio is equal to (the symbols carry their usual meaning) :
In an ideal transformer, the turns ratio is . The ratio is equal to (the symbols carry their usual meaning) :
According to transformer ratio,

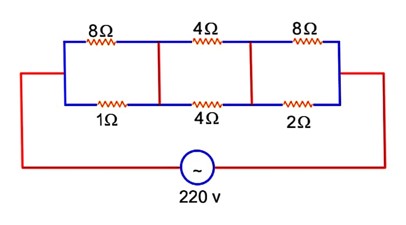

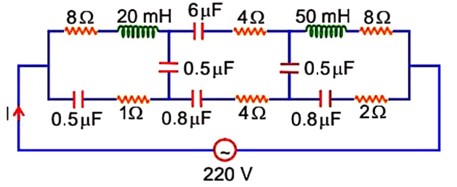

The effective current I in the given circuit at very high frequencies will be _________A.
The effective current I in the given circuit at very high frequencies will be _________A.
At very high frequencies
Thus equivalent circuit

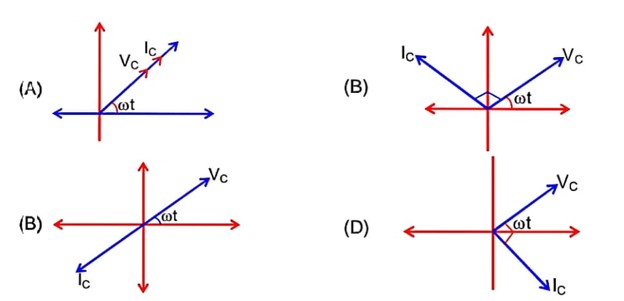

In a circuit consisting of a capacitance and a generator with alternating emf Eg = <!-- [if gte mso 9]><xml>
</xml><![endif]-->sin <!-- [if gte mso 9]><xml>
</xml><![endif]-->, VC and IC are the voltage and current. Correct phase diagram for such circuit is:
In a circuit consisting of a capacitance and a generator with alternating emf Eg = <!-- [if gte mso 9]><xml>
For capacitor : current leads emf
by 90°.
A series LCR circuit of R = <!-- [if gte mso 9]><xml>
</xml><![endif]--> L = 20mH and C = 0.5 <!-- [if gte mso 9]><xml>
</xml><![endif]--> is connected across an AC supply of 250 V, having variable frequency. The power dissipated at resonance condition is__________× 102 W.
A series LCR circuit of R = <!-- [if gte mso 9]><xml>
Power dissipated in cycle = P =
For resonance, z = R, so
In an LCR series circuit, an inductor 30mH and a resistor 1 are connected to an Ac source of angular frequency 300 rad/s. The value of capacitance for which, the current leads the voltage by 45° is Then the value of x is_________.
In an LCR series circuit, an inductor 30mH and a resistor 1 are connected to an Ac source of angular frequency 300 rad/s. The value of capacitance for which, the current leads the voltage by 45° is Then the value of x is_________.
Here

For a series LCR circuit with R = 100 <!-- [if gte mso 9]><xml>
</xml><![endif]-->, L = 0.5mH and C = 0.1 pF connected across 220V – 50Hz AC supply, the phase angle between current and supplied voltage and the nature of the circuit is:
For a series LCR circuit with R = 100 <!-- [if gte mso 9]><xml>
Since XC is approximately infinite, so the phase angle between current and supplied voltage and the nature of the circuit is
