Three Dimensional Geometry

Given,

The line passes through the point $A\left(1,2,3\right)$ .

Position vector of A,

$\overrightarrow{a}=\widehat{i}+2\widehat{j}+3\widehat{k}$

Let $\overrightarrow{b}=3\widehat{i}+2\widehat{j}-2\widehat{k}$

The line which passes through point $\overrightarrow{a}$ and parallel to $\overrightarrow{b}$ is given by,

$\begin{array}{l}\overrightarrow{r}=\overrightarrow{a}+\lambda \overrightarrow{b}\\ =\widehat{i}+2\widehat{j}+3\widehat{k}+\lambda \left(3\widehat{i}+2\widehat{j}-2\widehat{k}\right)\end{array}$ , where $\lambda$ is constant

Let AB be the line through the point $\left(4,7,8\right)$ and $\left(2,3,4\right)$ and CD be line through the point $\left(-1,-2,1\right)$ and $\left(1,2,5\right)$

Direction cosine, $a_1,b_1,c_1$ of AB are

$\begin{array}{l}=\left(2-4\right),\left(3-7\right),\left(4-8\right)\\ =\left(-2,-4,-4\right)\end{array}$

Direction cosine, $a_2,b_2,c_2$ of CD are

$\begin{array}{l}=\left(1-\left(-1\right)\right),\left(2-\left(-2\right)\right),\left(5-1\right)\\ =\left(2,4,4\right)\end{array}$

AB will be parallel to CD only

If

$\begin{array}{l}\frac{a_1}{a_2}=\frac{b_1}{b_2}=\frac{c_1}{c_2}\\ \Rightarrow \frac{-2}{2}=\frac{-4}{4}=\frac{-4}{4}\\ \Rightarrow -1=-1=-1\end{array}$

Here, $\frac{a_1}{a_2}=\frac{b_1}{b_2}=\frac{c_1}{c_2}$

Therefore, AB is parallel to CD.

Let AB be the line joining the points $\left(1,-1,2\right)$ and $\left(3,4,-2\right)$ and CD be the line joining the point $\left(0,3,2\right)$ and $\left(3,5,6\right)$ .

The direction ratios, a, b, c of AB are $\begin{array}{l}\left(3-1\right),\left(4-\left(-1\right)\right),\left(-2-2\right)\\ =\left(2,5,-4\right)\end{array}$

The direction ratios $a_2,b_2,c_2$ of CD are $\begin{array}{l}\left(3-0\right),\left(5-3\right),\left(6-2\right)\\ =\left(3,2,4\right)\end{array}$

AB and CD will be perpendicular to each other, if $a_1{a}_2+b_1{b}_2+c_1{c}_2=0$

$\begin{array}{l}=2*3+5*2+\left(-4\right)*4\\ =6+10-16\\ =0\end{array}$

$\therefore$ Therefore, AB and CD are perpendicular to each other.

Two lines with direction cosines l, m, n and l₂, m₂, n₂ are perpendicular to each other, if $l_1{l}_2+m_1{m}_2+n_1{n}_2=0$ .

Now, for the 3 lines with direction cosine,

$\begin{array}{l}\frac{12}{13},\frac{-3}{13},\frac{-4}{13}and\frac{4}{13},\frac{12}{13},\frac{3}{13}\\ l_1{l}_2+m_1{m}_2+n_1{n}_2=\frac{12}{13}*\frac{4}{13}+\frac{\left(-3\right)}{13}*\frac{12}{13}+\frac{\left(-4\right)}{13}*\frac{3}{13}\\ =\frac{48}{169}-\frac{36}{169}-\frac{12}{169}\\ =0\end{array}$

Hence, the lines are perpendicular.

For lines with direction cosines,

$\begin{array}{l}\frac{4}{13},\frac{12}{13},\frac{3}{13}and\frac{3}{13},\frac{-4}{13},\frac{12}{13}\\ l_1{l}_2+m_1{m}_2+n_1{n}_2=\frac{4}{13}*\frac{3}{13}+\frac{12}{13}*\frac{\left(-4\right)}{13}+\frac{3}{13}*\frac{12}{13}\\ =\frac{12}{169}-\frac{48}{169}+\frac{36}{169}\\ =0\end{array}$

Hence, these lines are perpendicular.

For the lines with direction cosines,

$\begin{array}{l}\frac{3}{13},\frac{-4}{13},\frac{12}{13}and\frac{12}{13},\frac{-3}{13},\frac{-4}{13}\\ l_1{l}_2+m_1{m}_2+n_1{n}_2=\frac{3}{13}*\frac{12}{13}+\frac{\left(-4\right)}{13}*\frac{\left(-3\right)}{13}+\frac{12}{13}*\frac{\left(-4\right)}{13}\\ =\frac{36+12-48}{169}\\ =0\end{array}$

Hence, these lines are perpendicular.

Therefore, all the lines are perpendicular.

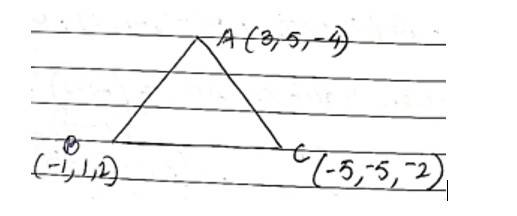

The vertices of ABC are A (3,5, -4), B (-1,1,2) and C (-5, -5, -2)

Direction ratio of side AB $\begin{array}{l}=\left(-1-3\right)\left(1-5\right)\left(2-(-4)\right)\\ =\left(-4,-4,6\right)\end{array}$



Direction cosine of AB,

Direction ratios of BC= $\begin{array}{l}\left(-5-\left(-1\right)\right),\left(-5-1\right),\left(-2-2\right)\\ =\left(-4,-6,-4\right)\end{array}$

Direction cosine of BC =







Direction of CA= $\begin{array}{l}\left(-5-3\right)\left(-5-5\right)\left(-2-\left(-4\right)\right)\\ =\left(-8,-10,2\right)\end{array}$

Direction cosine of CA =

Given,

A (2,3,4), B (-1, -2,1), C (5,8,7)

Direction ratio of AB= $\begin{array}{l}\left(-1-2\right),\left(-2-3\right),\left(1-4\right)\\ =\left(3,-5,-3\right)\end{array}$

Where, a₁=3, b₁=-5, c₁=-3

Direction ratio of BC= $\begin{array}{l}\left(5-\left(-1\right)\right),\left(8-\left(-2\right)\right),\left(7-1\right)\\ =\left(6,10,6\right)\end{array}$

Where, a₂=6, b₂=10, c₂=6

Now,

$\begin{array}{l}\frac{a_2}{a_1}=\frac{6}{-3}=-2\\ \frac{b_2}{b_1}=\frac{10}{-5}=-2\\ \frac{c_2}{c_1}=\frac{6}{-3}=-2\end{array}$

Here, direction ratio of two-line segments are proportional.

So, A, B, C are collinear.

Direction cosine are

$\begin{array}{l}\frac{-18}{},\frac{+12}{},\frac{-4}{}\\ =\frac{-18}{22},\frac{12}{22},\frac{-4}{22}\\ =\frac{-9}{11},\frac{6}{11},\frac{-2}{11}\end{array}$

Let the angles be α, β, r which are equal

Let the direction cosines of the line be l, m, n.

$\begin{array}{l}l=cos\alpha ,m=cos\beta ,n=cosr\\ \alpha =\beta =r\\ l^2+m^2+n^2=1\\ co{s}^2\alpha +co{s}^2\beta +co{s}^{2}r=1\\ co{s}^2\alpha +co{s}^2\alpha +co{s}^2\alpha =1\\ 3co{s}^2\alpha =1\\ co{s}^2\alpha =\frac{1}{3}\\ cos\alpha =\frac{1}{}\end{array}$

Let the direction cosine of the line be l, m, n.

Then,

$\begin{array}{l}l=90^{?}=cos90^{?}=0\\ m=cos135=\frac{-1}{}\\ n=cos45^{?}=\frac{1}{}\end{array}$
