New answer posted

7 months ago

Three Dimensional Geometry Class 12th

40. Find the equation of the line parallel to x-axis and passing through the origin.

0 Follower 28 Views

Vishal Baghel

Contributor-Level 10

The line parallel to x-axis and passing through the origin is x-axis itself.

Let A be a point on x-axis. Therefore, the coordinates of A are given by $(a, 0, 0), w h e r e a ? R .$ Direction ratios of $O A a r e (a ? 0) = a, 0, 0$

The equation of OA is given by,

$\begin{array}{l} \frac{x ? 0}{a} = \frac{y ? 0}{0} = \frac{z ? 0}{0} \\ ? \frac{x}{1} = \frac{y}{0} = \frac{z}{0} = a \end{array}$

Thus, the equation of line parallel to x-axis and passing through origin is

$\frac{x}{1} = \frac{y}{0} = \frac{z}{0}$

0 0

New answer posted

7 months ago

Three Dimensional Geometry Class 12th

39. If $l_{1}, m_{1}, n_{1} a n d l_{2}, m_{2}, n_{2}$ are the direction cosines of two mutually perpendicular lines, show that the direction cosines of the line perpendicular to both of these are $m_{1} n_{2} - m_{2} n_{1}, n_{1} l_{2} - n_{2} l_{1}, l_{1} m_{2} - l_{2} m_{1} .$

0 Follower 11 Views

Vishal Baghel

Contributor-Level 10

It is given that $l_{1}, m_{1}, n_{1} a n d l_{2}, m_{2}, n_{2}$ are the direction cosines of two mutually perpendicular lines. Therefore,

$\begin{array}{l} l_{1} l_{2} + m_{1} m_{2} + n_{1} n_{2} = 0 . . . . . . . . . . (1) \\ {l_{1}}^{2} + {m_{1}}^{2} + n_{1}^{2} = 1 . . . . . . . . . . (2) \\ {l_{2}}^{2} + {m_{2}}^{2} + n_{2}^{2} = 1 . . . . . . . . . . (3) \end{array}$

Let $l, m, n$ be the direction cosines of the line which is perpendicular to the line with direction cosines $l_{1}, m_{1}, n_{1} a n d l_{2}, m_{2}, n_{2} .$

$\begin{array}{l} ∴ l l_{1} + m m_{1} + n n_{1} = 0 \\ l l_{2} + m m_{2} + n n_{2} = 0 \\ ∴ \frac{l}{m_{1} n_{2} - m_{2} n_{1}} = \frac{m}{n_{1} l_{2} - n_{2} l_{1}} = \frac{n}{l_{1} m_{2} - l_{2} m_{1}} \\ \Rightarrow \frac{l^{2}}{{(m_{1} n_{2} - m_{2} n_{1})}^{2}} = \frac{m^{2}}{{(n_{1} l_{2} - n_{2} l_{1})}^{2}} = \frac{n^{2}}{{(l_{1} m_{2} - l_{2} m_{1})}^{2}} \\ \Rightarrow \frac{l^{2}}{{(m_{1} n_{2} - m_{2} n_{1})}^{2}} = \frac{m^{2}}{{(n_{1} l_{2} - n_{2} l_{1})}^{2}} = \frac{n^{2}}{{(l_{1} m_{2} - l_{2} m_{2})}^{2}} \\ = \frac{l^{2} + m^{2} + n^{2}}{{(m_{1} n_{2} - m_{2} n_{1})}^{2} + {(n_{1} l_{2} - n_{2} l_{1})}^{2} + {(l_{1} m_{2} - l_{2} m_{2})}^{2}} . . . . . . . . . . (4) \end{array}$

$l, m, n$ are the direction cosines of the line.

$∴ l^{2} + m^{2} + n^{2} = 1 \dots (5)$

It is known that,

$\begin{array}{l} ({l_{1}}^{2} + {m_{1}}^{2} + n_{1}^{2}) ({l_{2}}^{2} + {m_{2}}^{2} + n_{2}^{2}) - {(l_{1} l_{2} + m_{1} m_{2} + n_{1} n_{2})}^{2} \\ = {(m_{1} n_{2} - m_{2} n_{1})}^{2} + {(n_{1} l_{2} - n_{2} l_{1})}^{2} + {(l_{1} m_{2} - l_{2} m_{1})}^{2} \\ F r o m, (1), (2) & (3), w e . o b t a i n \\ \Rightarrow 1.1 - 0 = {(m_{1} n_{2} - m_{2} n_{1})}^{2} + {(n_{1} l_{2} - n_{2} l_{1})}^{2} + {(l_{1} m_{2} - l_{2} m_{1})}^{2} \\ ∴ {(m_{1} n_{2} - m_{2} n_{1})}^{2} + {(n_{1} l_{2} - n_{2} l_{1})}^{2} + {(l_{1} m_{2} - l_{2} m_{1})}^{2} = 1 . . . . . . . . . . (6) \end{array}$

Substituting the values from equations (5) and (6) in equation (4), we obtain

$\frac{l^{2}}{{(m_{1} n_{2} - m_{2} n_{1})}^{2}} = \frac{m^{2}}{{(n_{1} l_{2} - n_{2} l_{1})}^{2}} = \frac{n^{2}}{{(l_{1} m_{2} - l_{2} m_{1})}^{2}} = 1$

Thus, the direction cosines of the required line are $m_{1} n_{2} - m_{2} n_{1}, n_{1} l_{2} - n_{2} l_{1}, l_{1} m_{2} - l_{2} m_{1}$

0 0

New answer posted

7 months ago

Three Dimensional Geometry Class 12th

38. Show that the line joining the origin to the point $(2, 1, 1)$ is perpendicular to the line determined by the points $(3, 5, - 1), (4, 3, - 1) .$

0 Follower 2 Views

Vishal Baghel

Contributor-Level 10

Let OA be the line joining the origin, $O (0, 0, 0),$ and the point, $A (2, 1, 1) .$

Also, let BC be the line joining the points, $B (3, 5, - 1) a n d C (4, 3, - 1) .$

The direction ratios of $O A a r e 2, 1, a n d 1 a n d o f B C a r e (4 - 3) = 1, (3 - 5) = - 2, a n d (- 1 + 1) = 0$

OA is perpendicular to $B C, i f a_{1} a_{2} + b_{1} b_{2} + c_{1} c_{2} = 0$

$∴ a_{1} a_{2} + b_{1} b_{2} + c_{1} c_{2} = 2 * 1 + 1 (- 2) + 1 * 0 = 2 - 2 = 0$

Thus, OA is perpendicular to BC.

0 0

New answer posted

7 months ago

Three Dimensional Geometry Class 12th

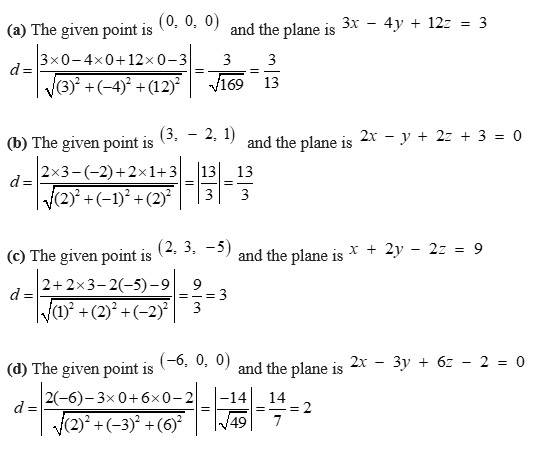

37. In the following cases find the distances of each of the given points from the corresponding given plane:

$\begin{array}{l} \end{array} (a) P o i n t (0, 0, 0) P l a n e 3 x - 4 y + 12 z = 3$

$(b) P o i n t (3, - 2, 1) P l a n e 2 x - y + 2 z + 3 = 0$

$c) P o i n t (2, 3, - 5) P l a n e x + 2 y - 2 z = 9$

$(d) P o i n t (- 6, 0, 0) P l a n e 2 x - 3 y + 6 z - 2 = 0$

0 Follower 1 View

Vishal Baghel

Contributor-Level 10

0 0

New answer posted

7 months ago

Three Dimensional Geometry Class 12th

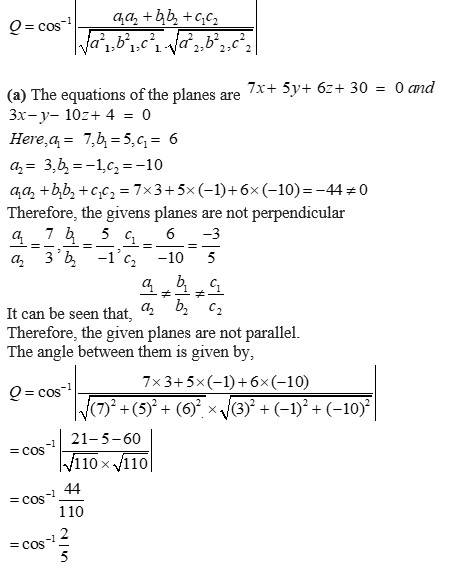

36. In the following cases, determine whether the given planes are parallel or perpendicular and in case they are neither, find the angle between them.

$\begin{array}{l} \end{array} (a) 7 x + 5 y + 6 z + 30 = 0 a n d 3 x - y - 10 z + 4 = 0$

$(b) 2 x + y + 3 z - 2 = 0 a n d x - 2 y + 5 = 0$

$(c) 2 x - 2 y + 4 z + 5 = 0 a n d 3 x - 3 y + 6 z - 1$

$(d) 2 x - y + 3 z - 1 = 0 a n d 2 x - y + 3 z + 3 = 0$

$(e) 4 x + 8 y + z - 8 = 0 a n d y + z - 4 = 0$

0 Follower 3 Views

Vishal Baghel

Contributor-Level 10

The direction ratios of normal to the plane, $L_{1} : a_{1} x + b_{1} y + c_{1} z = 0 .$ , are $a_{1}, b_{1}, c_{1}$ and $L_{2} : a_{2} x + b_{2} y + c_{2} z = 0 .$

$L_{1}$
$\begin{array}{l} L_{2}, i f \frac{a_{1}}{a_{2}} = \frac{b_{1}}{b_{2}} = \frac{c_{1}}{c_{2}} \\ L_{1} ⊥ L_{2}, i f a_{1} a_{2} + b_{1} b_{2} + c_{1} c_{2} = 0 \end{array}$

The angle between $L_{1} & L_{2}$ is given by,

(b) The equations of the planes are $2 x + y + 3 z - 2 = 0 a n d x - 2 y + 5 = 0$

$\begin{array}{l} a_{1} = 2, b_{1} = 1, c_{1} = 3 & a_{2} =, b_{2} = - 2, c_{2} = \\ a_{1} a_{2} + b_{1} b_{2} + c_{1} c_{2} = 2 * 1 + 1 * (- 2) + 3 * 0 = 0 \end{array}$

Thus, the given planes are perpendicular to each other.

(c) The equations of the given planes are $2 x - 2 y + 4 z + 5 = 0 a n d 3 x - 3 y + 6 z - 1$

Here, $a_{1} = 2, b_{1} = - 2, c_{1} = 4 & a_{2} =, b_{2} = - 3, c_{2} = 6$

$a_{1} a_{2} + b_{1} b_{2} + c_{1} c_{2} = 2 * 3 + 1 * (- 2) (- 3) + 4 * 6 = 6 + 6 + 24 = 36 \neq 0$

Thus, the given planes are not perpendicular to each other.

$\begin{array}{l} \frac{a_{1}}{a_{2}} = \frac{2}{3}, \frac{b_{1}}{b_{2}} = \frac{- 2}{- 3} = \frac{2}{3} & \frac{c_{1}}{c_{2}} = \frac{4}{6} = \frac{2}{3} \\ ∴ \frac{a_{1}}{a_{2}} = \frac{b_{1}}{b_{2}} = \frac{c_{1}}{c_{2}} \end{array}$

Thus, the given planes are parallel to each other

(d) The equations of the planes are and $2 x - y + 3 z - 1 = 0 a n d 2 x - y + 3 z + 3 = 0$

$\begin{array}{l} a_{1} = 2, b_{1} = - 1, c_{1} = 3 & a_{2} =, b_{2} = - 1, c_{2} = 3 \\ \frac{a_{1}}{a_{2}} = \frac{2}{2} = 1, \frac{b_{1}}{b_{2}} = \frac{- 1}{- 1} = 1 & \frac{c_{1}}{c_{2}} = \frac{3}{3} = 1 \\ ∴ \frac{a_{1}}{a_{2}} = \frac{b_{1}}{b_{2}} = \frac{c_{1}}{c_{2}} \end{array}$

Thus, the given lines are parallel to each other

(e) The equations of the given planes are $4 x + 8 y + z - 8 = 0 a n d y + z - 4 = 0$ $\begin{array}{l} a_{1} = 4, b_{1} = 8, c_{1} = 1 & a_{2} =, b_{2} = 1, c_{2} = 1 \\ a_{1} a_{2} + b_{1} b_{2} + c_{1} c_{2} = 4 * 0 + 8 * 1 + 1 = 9 \neq 0 \end{array}$

Therefore, the given lines are not perpendicular to each

...more

The direction ratios of normal to the plane, $L_{1} : a_{1} x + b_{1} y + c_{1} z = 0 .$ , are $a_{1}, b_{1}, c_{1}$ and $L_{2} : a_{2} x + b_{2} y + c_{2} z = 0 .$

$L_{1}$
$\begin{array}{l} L_{2}, i f \frac{a_{1}}{a_{2}} = \frac{b_{1}}{b_{2}} = \frac{c_{1}}{c_{2}} \\ L_{1} ⊥ L_{2}, i f a_{1} a_{2} + b_{1} b_{2} + c_{1} c_{2} = 0 \end{array}$

The angle between $L_{1} & L_{2}$ is given by,

(b) The equations of the planes are $2 x + y + 3 z - 2 = 0 a n d x - 2 y + 5 = 0$

$\begin{array}{l} a_{1} = 2, b_{1} = 1, c_{1} = 3 & a_{2} =, b_{2} = - 2, c_{2} = \\ a_{1} a_{2} + b_{1} b_{2} + c_{1} c_{2} = 2 * 1 + 1 * (- 2) + 3 * 0 = 0 \end{array}$

Thus, the given planes are perpendicular to each other.

(c) The equations of the given planes are $2 x - 2 y + 4 z + 5 = 0 a n d 3 x - 3 y + 6 z - 1$

Here, $a_{1} = 2, b_{1} = - 2, c_{1} = 4 & a_{2} =, b_{2} = - 3, c_{2} = 6$

$a_{1} a_{2} + b_{1} b_{2} + c_{1} c_{2} = 2 * 3 + 1 * (- 2) (- 3) + 4 * 6 = 6 + 6 + 24 = 36 \neq 0$

Thus, the given planes are not perpendicular to each other.

Thus, the given planes are parallel to each other

(d) The equations of the planes are and $2 x - y + 3 z - 1 = 0 a n d 2 x - y + 3 z + 3 = 0$

Thus, the given lines are parallel to each other

Therefore, the given lines are not perpendicular to each other.

$\begin{array}{l} \frac{a_{1}}{a_{2}} = \frac{4}{0}, \frac{b_{1}}{b_{2}} = \frac{8}{1} = 8 & \frac{c_{1}}{c_{2}} = \frac{1}{1} = 1 \\ ∴ \frac{a_{1}}{a_{2}} \neq \frac{b_{1}}{b_{2}} \neq \frac{c_{1}}{c_{2}} \end{array}$

Therefore, the given lines are not parallel to each other.

The angle between the planes is given by,

less

0 0

New answer posted

7 months ago

Three Dimensional Geometry Class 12th

35. Find the angle between the planes whose vector equations are $\vec{r} . (2 \hat{i} + 2 \hat{j} - 3 \hat{k}) = 5 & \vec{r} . (3 \hat{i} - 3 \hat{j} + 5 \hat{k}) = 3$

0 Follower 4 Views

Vishal Baghel

Contributor-Level 10

The equations of the given planes are $\vec{r} . (2 \hat{i} + 2 \hat{j} - 3 \hat{k}) = 5 & \vec{r} . (3 \hat{i} - 3 \hat{j} + 5 \hat{k}) = 3$

It is known that if n1 and n2 are normal to the planes, $\vec{r} . \vec{n_{1}} = d_{1} & \vec{r} . \vec{n_{2}} = d_{2}$ then the angle between them, Q, is given by,

$c o s Q = | \frac{\vec{n_{1}} . \vec{n_{2}}}{| \vec{n_{1}} | | \vec{n_{2}} |} | . . . . . . . . . . (1)$

$\begin{array}{l} H e r e, \vec{n_{1}} = 2 \hat{i} + 2 \hat{j} - 3 \hat{k} & \vec{n_{2}} = 3 \hat{i} - 3 \hat{j} + 5 \hat{k} \\ ∴ \vec{n_{1}} . \vec{n_{2}} = (2 \hat{i} + 2 \hat{j} - 3 \hat{k}) (3 \hat{i} - 3 \hat{j} + 5 \hat{k}) = 2.3 + 2 . (- 3) + (- 3) . 5 = - 15 \\ | \vec{n_{1}} | = = \\ | \vec{n_{2}} | = = \end{array}$

Substituting the value of $\vec{n_{1}} . \vec{n_{2}}$ $| \vec{n_{1}} | & | \vec{n_{2}} |$ in equation (1), we obtain

$\begin{array}{l} c o s Q = | \frac{- 15}{.} | \\ \Rightarrow c o s Q = \frac{15}{} \\ \Rightarrow c o s Q^{- 1} = (\frac{15}{}) \end{array}$

0 0

New answer posted

7 months ago

Three Dimensional Geometry Class 12th

34. Find the equation of the plane through the line of intersection of the planes $x + y + z = 1 a n d 2 x + 3 y + 4 z = 5$ which is perpendicular to the plane $x - y + z = 0$

0 Follower 2 Views

Vishal Baghel

Contributor-Level 10

The equation of the plane through the intersection of the planes, $x + y + z = 1 a n d 2 x + 3 y + 4 z = 5$ , is

$(x + y + z - 1) + λ (2 x + 3 y + 4 z - 5)$

$\Rightarrow (2 λ + 1) x + (3 λ + 1) y + (4 λ + 1) z - (5 λ + 1) = 0 . . . . . . . . . . (1)$

The direction ratios, $a_{1}, b_{1}, c_{1},$ of this plane are $(2 λ + 1), (3 λ + 1), a n d (4 λ + 1) .$

The plane in equation (1) is perpendicular to $x - y + z = 0$

Its direction ratios, $a_{2}, b_{2}, c_{2},$ are $1, - 1, a n d 1$ .

Since the planes are perpendicular,

$\begin{array}{l} a_{1} a_{2} + b_{1} b_{2} + c_{1} c_{2} = 0 \\ \Rightarrow (2 λ + 1) - (3 λ + 1) + (4 λ + 1) = 0 \\ \Rightarrow 3 λ + 1 = 0 \\ \Rightarrow λ = - \frac{1}{3} \end{array}$

Substituting $λ = - \frac{1}{3}$ in equation (1), we obtain

$\begin{array}{l} \frac{1}{3} x - \frac{1}{3} z + \frac{2}{3} = 0 \\ \Rightarrow x - z + 2 = 0 \end{array}$

This is the required equation of the plane.

0 0

New answer posted

7 months ago

Three Dimensional Geometry Class 12th

33. Find the vector equation of the plane passing through the intersection of the planes $\vec{r} . (2 \hat{i} + 2 \hat{j} - 2 \hat{k}) = 7, \vec{r} . (2 \hat{i} + 5 \hat{j} + 3 \hat{k}) = 9$ and through the point $(2, 1, 3) .$

0 Follower 5 Views

Vishal Baghel

Contributor-Level 10

The equations of the planes are $\vec{r} . (2 \hat{i} + 2 \hat{j} - 2 \hat{k}) = 7, \vec{r} . (2 \hat{i} + 5 \hat{j} + 3 \hat{k}) = 9$

$\begin{array}{l} \Rightarrow \vec{r} . (2 \hat{i} + 2 \hat{j} - 2 \hat{k}) - 7 = 0 . . . . . . . . . . (1) \\ \Rightarrow \vec{r} . (2 \hat{i} + 5 \hat{j} + 3 \hat{k}) - 9 = 0 . . . . . . . . . . (2) \end{array}$

The equation of any plane through the intersection of the planes given in equations (1) and (2) is given by,

$\begin{array}{l} [\vec{r} . (2 \hat{i} + 2 \hat{j} - 2 \hat{k}) - 7] + λ [\vec{r} . (2 \hat{i} + 5 \hat{j} + 3 \hat{k}) - 9] = 0, w h e r e, λ \in R \\ \vec{r} . [(2 \hat{i} + 2 \hat{j} - 2 \hat{k}) + λ (2 \hat{i} + 5 \hat{j} + 3 \hat{k})] = 9 λ + 7 \\ \vec{r} . [(2 + 2 λ) \hat{i} + (2 + 5 λ) \hat{j} + (3 λ - 3) \hat{k}] = 9 λ + 7 . . . . . . . . . . (3) \end{array}$

The plane passes through the point (2, 1, 3). Therefore, its position vector is given by,

$\vec{r} = 2 \hat{i} + 1 \hat{j} + 3 \hat{k}$

Substituting in equation (3), we obtain

$\begin{array}{l} (2 \hat{i} + \hat{j} + 3 \hat{k}) . [(2 + 2 λ) \hat{i} + (2 + 5 λ) \hat{j} + (3 λ - 3) \hat{k}] = 9 λ + 7 \\ \Rightarrow 2 (2 + 2 λ) + 1 (2 + 5 λ) + 3 (3 λ - 3) = 9 λ + 7 \\ \Rightarrow 4 + 4 λ + 2 + 5 λ + 9 λ - 9 = 9 λ + 7 \\ \Rightarrow 18 λ - 3 = 9 λ + 7 \\ \Rightarrow 9 λ = 10 \\ \Rightarrow λ = \frac{10}{9} \end{array}$

Substituting $λ = \frac{10}{9}$ in equation (3), we obtain

$\begin{array}{l} \vec{r} . (\frac{38}{9} \hat{i} + \frac{68}{9} \hat{j} + \frac{3}{9} \hat{k}) = 17 \\ \Rightarrow \vec{r} . (38 \hat{i} + 68 \hat{j} + 3 \hat{k}) = 153 \end{array}$

This is the vector equation of the required plane.

0 0

New answer posted

7 months ago

Three Dimensional Geometry Class 12th

31. Find the equation of the plane through the intersection of the planes $3 x - y + 2 z - 4 = 0 a n d x +$ $y + z - 2 = 0$ and the point $(2, 2, 1) .$

0 Follower 8 Views

Vishal Baghel

Contributor-Level 10

The equation of any plane through the intersection of the planes,

$3 x - y + 2 z - 4 = 0 a n d x + y + z - 2 = 0,$ is

$(3 x - y + 2 z - 4) + α (x + y + z - 2) = 0, w h e r e, α \in R . . . . . . . . . . (1)$

The plane passes through the point $(2, 2, 1) .$ Therefore, this point will satisfy equation (1).

$\begin{array}{l} ∴ (3 * 2 - 2 + 2 * 1 - 4) + α (2 + 2 + 1 - 2) = 0 \\ \Rightarrow 2 + 3 α = 0 \\ \Rightarrow α = - \frac{2}{3} \end{array}$

Substituting $α = - \frac{2}{3}$ in equation (1), we obtain

$\begin{array}{l} (3 x - y + 2 z - 4) - \frac{2}{3} (x + y + z - 2) = 0 \\ \Rightarrow 3 (3 x - y + 2 z - 4) - 2 (x + y + z - 2) = 0 \\ \Rightarrow (9 x - 3 y + 6 z - 12) - 2 (x + y + z - 2) = 0 \\ \Rightarrow 7 x - 5 y + 4 z - 8 = 0 \end{array}$

0 0

New answer posted

7 months ago

Three Dimensional Geometry Class 12th

30. Find the equation of the plane with intercept 3 on the y- axis and parallel to ZOX plane.

0 Follower 2 Views

Vishal Baghel

Contributor-Level 10

The equation of the plane ZOX is

y = 0

Any plane parallel to it is of the form, y = a

Since the y-intercept of the plane is 3,

∴ a = 3

Thus, the equation of the required plane is y = 3

0 0
