New answer posted

2 months ago

Communication Systems physics ncert exemplar solutions class 12th chapter two

A sinusoidal wave y(t) = 40 sin (10 * 10⁶pt) is amplitude modulated by another sinusoidal wave x(t) = 20sin(1000πt). The amplitude of minimum frequency component of modulated signal is:

0 Follower 2 Views

Vishal Baghel

Contributor-Level 10

$C_{m} (t) = A_{C} s i n ω_{C} t + \frac{μ A_{C}}{2} [c o s (ω_{C} - ω_{m}) t - c o s (ω_{C} + ω_{m}) t]$

$μ = \frac{A m}{A_{C}}$

$A_{C} = 40$

$μ = \frac{1}{2}$

So amplitude of minimum frequency = $\frac{μ A_{C}}{2}$

= 10

0 0

New answer posted

2 months ago

Communication Systems Class 12th

Only 2% of the optical source frequency is the available channel bandwidth for an optical communicating system operating at 1000 nm. If an signal requires a bandwith of 8 kHz, how many channels can be accommodated for transmission:

0 Follower 3 Views

alok kumar singh

Contributor-Level 10

$v = f λ$

$f = \frac{v}{λ} = \frac{3 * 1 0^{8}}{1 0^{3} * 1 0^{- 9}} = 3 * 1 0^{14} H_{z}$

Channels = $\frac{2 % o f 3 * 1 0^{14} H_{z}}{8 * 1 0^{3}}$

$\frac{2 % o f 3 * 1 0^{14} H_{z}}{8 * 1 0^{3}}$

$\frac{= \frac{2 x}{100} 3 * 1 0^{14}}{8 * 1 0^{3}} = 75 * 1 0^{7}$

0 0

View All 2 Answers

New answer posted

2 months ago

Communication Systems Waves

A longitudinal wave is represented by x = 10 sin 2p $(n t - \frac{x}{λ}) c m .$ The maximum particle velocity will be four times the wave velocity if the determined value of wavelength is equal to:

0 Follower 1 View

alok kumar singh

Contributor-Level 10

x = 10 $2 ? (n t ? \frac{x}{?}) c m$

V (wave velocity) = $\frac{? ?}{2 ?}$

v_max = 10 * 2p n

10 * 2pn = 4 * $\frac{? ?}{2 ?}$

10 * 2pn = $4 \frac{2 ? ? n ?}{2 ?}$

x = 5?

0 0

New answer posted

2 months ago

Communication Systems Physics NCERT Exemplar Solutions Class 12th Chapter Fifteen

If the highest frequency modulating a carrier is 5 kHz, then the number of AM broadcast stations accommodated in a 90 kHz bandwidth are

0 Follower 2 Views

Payal Gupta

Contributor-Level 10

Band Width = 2 * n * the highest modulation frequency

$\Rightarrow n = \frac{90 k H_{z}}{2 * 5 k H z} = 9$

0 0

New answer posted

2 months ago

Communication Systems Physics NCERT Exemplar Solutions Class 12th Chapter Fifteen

The maximum and minimum voltage of an amplitude modulated signal are 60V and 20V respectively. The percentage modulation index will be:

0 Follower 2 Views

alok kumar singh

Contributor-Level 10

Percentage modulation = $\frac{(V_{m a x} - V_{m i n})}{(V_{m a x} + V_{m i n})} * 100 %$

Percentage modulation = $(\frac{60 - 20}{80 + 20}) * 100$

= 50%

0 0

New answer posted

2 months ago

Communication Systems Physics NCERT Exemplar Solutions Class 12th Chapter Fifteen

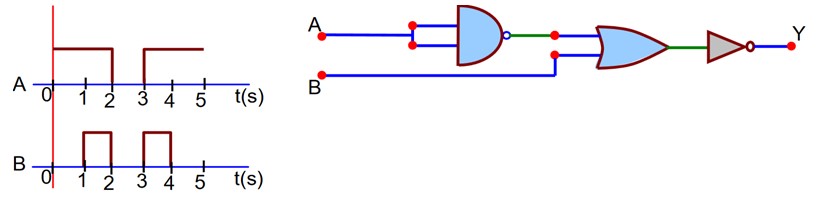

Draw the output signal Y in the given combination of gates.

0 Follower 5 Views

Payal Gupta

Contributor-Level 10

$y = \bar{\bar{A} + B} = A . \bar{B}$

0 0

New answer posted

2 months ago

Communication Systems Physics NCERT Exemplar Solutions Class 12th Chapter Fifteen

A radio can tune to any station in 6 MHz to 10 MHz band. The value of corresponding of wavelength bandwidth will be:

0 Follower 3 Views

Vishal Baghel

Contributor-Level 10

$λ_{1} = 6 M H z = 6 * 1 0^{6} H z$

$λ_{1} = \frac{C}{υ_{1}} = \frac{3 * 1 0^{8}}{6 * 1 0^{6}} = 50 m$

$λ_{2} = \frac{C}{υ_{2}} = 10 * 1 0^{6} = \frac{3 * 1 0^{8}}{10 * 1 0^{6}} = 30 m$

Wavelength bandwidth

$= | λ_{1} - λ_{2} | = 20 m$

0 0

New answer posted

2 months ago

Communication Systems Physics NCERT Exemplar Solutions Class 12th Chapter Fifteen

A FM Broad cast transmitter, using modulating signal of frequency 20 kHz has a deviation ratio of 10. The Bandwidth required for transmission is:

0 Follower 1 View

Vishal Baghel

Contributor-Level 10

f = 20 kHz

Deviation ratio = 10

0 0

New answer posted

2 months ago

Communication Systems Physics NCERT Exemplar Solutions Class 12th Chapter Fifteen

Match List – I with List – II

	List – I		List – II
A.	Television signal	I.	03 KHz
B.	Radio signal	II.	20 KHz
C.	High Quality Music	III.	02 MHz
D.	Human speech	IV.	06 MHz

Choose the correct answer from the options given below:

0 Follower 1 View

Payal Gupta

Contributor-Level 10

Using factual data.

0 0

New answer posted

2 months ago

Communication Systems Physics NCERT Exemplar Solutions Class 12th Chapter Fifteen

The current I flowing through the given circuit will be_________A.

0 Follower 2 Views

Vishal Baghel

Contributor-Level 10

$i = \frac{v}{R_{N e t}} = \frac{6}{3} = 2 A$

0 0
