Write the value of current i3 (in mA) in the circuit shown in the figure.
Write the value of current i3 (in mA) in the circuit shown in the figure.
Potential difference across
In the circuit shown the readings of ammeter and voltmeter are and respectively. The meters are non-ideal, then R is:
In the circuit shown the readings of ammeter and voltmeter are and respectively. The meters are non-ideal, then R is:
The circuit shown in the figure is in steady state for a long time. The connection to battery is suddenly broken (switch S is opened up). What is the charge (in <!-- [if gte mso 9]><xml>
</xml><![endif]-->) on the capacitor after 0.001 sec.?
The circuit shown in the figure is in steady state for a long time. The connection to battery is suddenly broken (switch S is opened up). What is the charge (in <!-- [if gte mso 9]><xml>
p.d across capacitor = 20 v
Q = CV = 5 * 20 = 100
After S is open
Q = Q . e-t/RC
=100 e-4
In the figure shown below, the maximum and minimum possible unknown resistance (X), that can be measured by the post office box are Xmax and Xmin respectively. Then the ratio of these two resistances is: (In this experiment, we take out only one plug in arm AB and only one plug in arm BC, but in arm AD we can take any no. of plugs):
In the figure shown below, the maximum and minimum possible unknown resistance (X), that can be measured by the post office box are Xmax and Xmin respectively. Then the ratio of these two resistances is: (In this experiment, we take out only one plug in arm AB and only one plug in arm BC, but in arm AD we can take any no. of plugs):
In the colour coding system of carbon resistors, the tolerance (in %) shown by gold band is ____.
In the colour coding system of carbon resistors, the tolerance (in %) shown by gold band is ____.
A composite rod made up of two conductors of resistivity ρ1 and ρ2 is show in the figure. If face A and B are connected to a battery, find the resistance of the rod.
<!-- [if !supportLineBreakNewLine]-->
<!--[endif]-->
A composite rod made up of two conductors of resistivity ρ1 and ρ2 is show in the figure. If face A and B are connected to a battery, find the resistance of the rod.
<!-- [if !supportLineBreakNewLine]-->
<!--[endif]-->
R? = (ρ? L)/a² R? = (ρ? L)/ (3a²)
Both are in parallel . R? = (R? )/ (R? +R? ) = (ρ? ρ? L)/ (a² (3ρ? +ρ? )
In connection with the circuit drawn below, the value of current flowing through 2 resistor is________ × 10-4A.
In connection with the circuit drawn below, the value of current flowing through 2 resistor is________ × 10-4A.
Potential difference across 2k

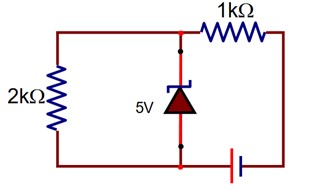

The total current supplied to the circuit is shown in figure by the 5 V battery is…………….A.
The total current supplied to the circuit is shown in figure by the 5 V battery is…………….A.
