The main difference between SRAM (Static Random-Access Memory) and DRAM (Dynamic Random-Access Memory) is that SRAM stores data using flip-flop circuits, which are faster and require continuous power to retain data, while DRAM uses capacitors to store data, making it slower but more power-efficient as it needs periodic refreshing.


SRAM (Static Random-Access Memory) and DRAM (Dynamic Random-Access Memory) are two fundamental types of computer memory with significant differences. SRAM is faster and more expensive, while DRAM is slower and more affordable but crucial for system memory and storage. Both RAM types have their own set of advantages and disadvantages. Let’s explore the difference between SRAM and DRAM.

Explore Online Networking and Hardware Courses

Table of Content

Comparison Table- SRAM vs DRAM

Parameters SRAM DRAM
Static It does not need to be refreshed periodically. It needs to be refreshed periodically.
Fast access Faster access time Slow access time
Power Requires less power Required more power
Density High Low
Cost Expensive Less expensive
Reliability More reliable Less reliable
Volatility Volatile Non- volatile
Size Available in small size Available in large size
Temperature Good choice for applications that may be exposed to extreme temperatures. Not suitable for such applications.
Difference Between Web Browser and Web Server
Difference Between Web Browser and Web Server
In this article, we will briefly discuss what Web Browser and Web Servers are, their features, and the differences between them.
What Is A Motherboard?
What Is A Motherboard?
It will be difficult for most of us to define what a motherboard is. A motherboard can be defined as a circuit board that distributes power and allows communication to...read more

What is SRAM

Static Random Access Memory (SRAM) is a memory commonly used in computers and other electronic devices. SRAM retains its data without periodic refreshing, making it a faster and more reliable form of memory. As long as power is supplied to the memory chip, this type of semiconductor memory data remains constant. It stores data using a circuit made up of transistors and gates. Its features make it a good choice for critical applications, like aerospace and defence industries, where reliability and performance are crucial.

What is SRAM Full Form?
What is SRAM Full Form?
Here we will cover the SRAM which is one of the types of RAM. You will learn about SRAM types, applications, advantages, and disadvantages.

Different Types of Memory in Computer
Different Types of Memory in Computer
For a system to function properly, it is important to have different types of memory in computer. It stores information that the CPU uses for processing and completing instructions. There...read more

Advantages of SRAM

Fast access time

This makes it well-suited for high-speed memory applications such as cache memory. The cache memory is a small, fast memory that stores frequently accessed data to quickly retrieve it without accessing the slower main memory. This helps to improve the overall performance of the system.

High reliability

SRAM is known for its reliability. It does not need continuous data refreshing, making it less susceptible to data loss because of power failures. Hence, it is an excellent choice for military and industrial applications requiring data integrity.

Low power consumption

This makes it useful for battery-powered devices, where power consumption is a critical consideration. SRAM is also available in a denser configuration, making it useful for applications requiring a lot of memory in a small space.

Difference Between Primary Memory and Secondary Memory
Difference Between Primary Memory and Secondary Memory
Computer memory is simply the computer’s brain where data and information are stored for easy retrieval. Memory is the computer’s storage space that temporarily or permanently stores data or programs....read more

What Is A Motherboard?
What Is A Motherboard?
It will be difficult for most of us to define what a motherboard is. A motherboard can be defined as a circuit board that distributes power and allows communication to...read more

Unveil the leading courses for immediate job readiness after 12th. Also, discover career pathways with specialized online degree programs.

What is DRAM

Dynamic Random Access Memory (DRAM) is a type of memory commonly used in computers and other electronic devices. DRAM is named dynamic because it requires periodic modification and activity to retain data. It is employed in the implementation of main memory. This makes it a slower and less reliable form of memory but also cheaper and less power-hungry. DRAM uses a capacitor and stores every bit of data on the 2 different capacitors. It is the most efficient way to store data as the space required for storing data is less than the static RAM.

Memory Management Techniques in Operating System
Memory Management Techniques in Operating System
Memory management is very important aspect of operating system performance.In this article we have covered different memory management techniques like paging,swapping,compaction and segmentation. This article covers different topics related to...read more

Difference Between Volatile and Non-Volatile Memory
Difference Between Volatile and Non-Volatile Memory
There are two primary types of hardware-based memory, volatile and non-volatile. The main difference between both is that volatile memory is any data storage that does not retain its information...read more

Advantages of DRAM

Speed

DRAM is faster than the other forms of memory your computer uses in general. For instance, when compared to your hard disc, it recalls data more quickly when using external devices like a thumb drive or optical drive. Users frequently access DRAM data who require quick access to keep their programs running well.

High Density and Less Power Consumption

DRAM can store large amounts of data in a small physical space. This is why it is widely used in various electronic devices, including computers, smartphones, and servers. Also, DRAM consumes less power than SRAM, making it useful for devices that need to run for long periods on a single battery charge.

Affordable

DRAM is less expensive per bit of storage than other types of memory. Due to its complex layout, SRAM costs more per GB. Further, DRAM prices have been dropping for years, with manufacturers making it more affordable.

Difference Between RAM And ROM
Difference Between RAM And ROM
RAM and ROM are two commonly used terms in computers. The primary distinction between RAM and ROM is that RAM is random access memory, whereas ROM is read-only memory. RAM...read more
Difference Between Primary Memory and Secondary Memory
Difference Between Primary Memory and Secondary Memory
Computer memory is simply the computer’s brain where data and information are stored for easy retrieval. Memory is the computer’s storage space that temporarily or permanently stores data or programs....read more

Key Differences Between SRAM and DRAM

  • Speed: SRAM (Static RAM) is faster than DRAM (Dynamic RAM), offering quicker access to data.

  • Design Complexity: SRAM is more complex, using six transistors per bit, whereas DRAM uses one transistor and one capacitor per bit, making it simpler.

  • Cost: SRAM is more expensive to manufacture due to its complexity, while DRAM is less expensive.

  • Power Consumption: SRAM consumes less power in idle state but more during read/write operations, whereas DRAM consumes a steady amount of power due to constant refreshing.

  • Data Volatility: Both are volatile, but SRAM retains data as long as power is supplied without needing refresh cycles, unlike DRAM.

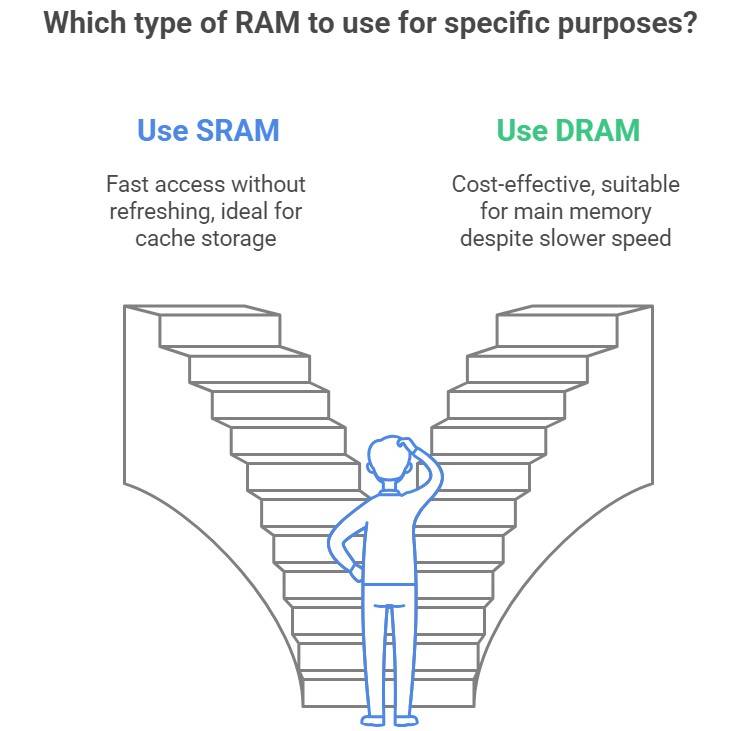

  • Usage: SRAM is used for cache memory in CPUs due to its speed, while DRAM is used for main system memory, balancing cost and performance.

Conclusion

SRAM is faster, more expensive, less dense than DRAM, and primarily used as cache memory. DRAM is a type of memory that offers low cost and low power consumption but slower access time, typically used for main memory applications in computers and other electronic devices. Despite their advantages and disadvantages, we use both types of RAM depending upon the particular device condition and requirement.

Recommended Articles:

Difference Between Volatile and Non-Volatile Memory
Difference Between Volatile and Non-Volatile Memory
There are two primary types of hardware-based memory, volatile and non-volatile. The main difference between both is that volatile memory is any data storage that does not retain its information...read more

Difference Between Bluetooth and Wi-Fi
Difference Between Bluetooth and Wi-Fi
In this article, we will discuss what is Bluetooth, what is Wi-FI, the difference between Bluetooth and Wi-FI, and their corresponding features.

FAQs

What is the basic difference between SRAM and DRAM?

SRAM and DRAM are two types of memory technologies used in computers. The main difference lies in how they store and retain data. SRAM uses flip-flops to store each bit of data, providing faster access but requiring more transistors. DRAM, on the other hand, uses a capacitor to store data, which needs to be constantly refreshed, making it slower but more space-efficient.

Which memory type is faster: SRAM or DRAM?

SRAM is generally faster than DRAM in terms of accessing data. SRAM can access data almost instantly, while DRAM requires additional time for data access due to the refresh cycle. As a result, SRAM is often used for cache memory, where quick access is crucial, while DRAM is used for main memory.

Which memory type is more expensive: SRAM or DRAM?

SRAM is more expensive than DRAM due to its higher manufacturing costs. The construction of SRAM requires more transistors per bit of data, making it costlier to produce compared to DRAM, which requires fewer components. Consequently, DRAM is commonly used as the primary memory in computers and other electronic devices due to its cost-effectiveness.

Which memory type has higher density: SRAM or DRAM?

DRAM has a higher density compared to SRAM. In DRAM, each memory cell consists of a single capacitor and a transistor, allowing for more compact storage of data. SRAM, with its flip-flop-based design, requires more transistors per bit, resulting in larger memory cell sizes and lower density.

Does SRAM or DRAM consume more power?

SRAM consumes more power compared to DRAM. The flip-flop structure of SRAM retains data without the need for refreshing, making it faster but more power-hungry. In contrast, DRAM needs constant refreshing to maintain data integrity, which consumes less power. As a result, SRAM is commonly used in cache memory and other applications that prioritize speed over power consumption, while DRAM is used for main memory.

Which memory type is more stable: SRAM or DRAM?

SRAM is more stable than DRAM because it does not require refreshing. As long as power is supplied to the SRAM, the stored data remains intact. On the other hand, DRAM requires continuous refreshing to prevent the charge stored in the capacitors from leaking away. If power is lost or not maintained, the data in DRAM will be lost.
