Ray Optics NEET PYQ with Answers: PDF Download

Ray Optics NEET PYQ must be solved to score good marks in NEET 2026. Previous year questions from Ray Optics and Optical instruments chapter helps students get to know about important topics and difficulty level. Download Ray Optics NEET PYQ with answers PDF here for free.

Ray Optics NEET PYQ

Solving Ray Optics NEET PYQ is crucial to perform well in the NEET 2026 examination. When it comes to NEET, practicing previous years papers is considered an important aspect of the preparation strategy. Students should attempt the NEET PYQ on Ray Optics chapter of Physics section to understand the questions asked and overall difficulty level. The NEET Ray Optics topic carries weightage of around 6 per cent in Physics section. Around 3 questions are asked every year from this topic. Students can easily score full marks in this section if they prepare with proper plan and strategy. Check below some NEET Ray Optics questions with answers from last 5 years NEET question papers. Also, download the Ray Optics NEET PYQ PDF below.

Ray Optics NEET Syllabus 2026

To understand the topic well, candidates must study the Ray Optics and Optical instruments chapter in detail. Generally, the questions are asked from laws like reflection and refraction, image formation in mirrors and lenses, magnifying glasses, microscopes, telescopes , etc. Check below NEET syllabus 2026 of Ray Optics chapter below-

• Reflection of light
• Spherical mirrors
• Morror formula
• Refraction of light at plane and spherical surfaces
• Thin lens formula and lens maker formula
• Total internal reflection and its applications
• Magnification
• Power of a Lens
• Combination of thin lenses in contact
• Refraction of light through a prism
• Microscope and Astronomical Telescope and their magnifying powers

Also Read: Most Repeated Questions in NEET Biology, Chemistry and Physics

Ray Optics NEET PYQ with Answers

Ray Optics topic of NEET Physics syllabus 2026 deals with the behavior of light, how light rays travel and its use in various optical devices. Candidates must have theoretical as well as practical knowledge of this chapter. Check some of the Ray Optics NEET PYQ and MCQs from previous years question papers below:

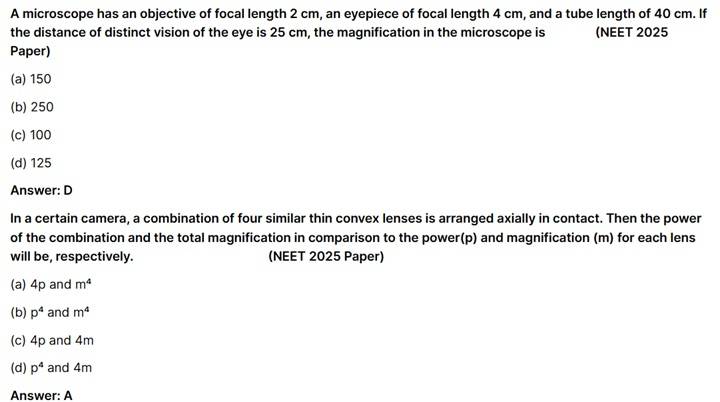

A microscope has an objective of focal length 2 cm, an eyepiece of focal length 4 cm, and a tube length of 40 cm. If the distance of distinct vision of the eye is 25 cm, the magnification in the microscope is                (NEET 2025 Paper)

(a) 150

(b) 250

(c) 100

(d) 125

Answer: D

In a certain camera, a combination of four similar thin convex lenses is arranged axially in contact. Then the power of the combination and the total magnification in comparison to the power(p) and magnification (m) for each lens will be, respectively.                                           (NEET 2025 Paper)

(a) 4p and m⁴

(b) p⁴ and m⁴

(c) 4p and 4m

(d) p⁴ and 4m

Answer: A

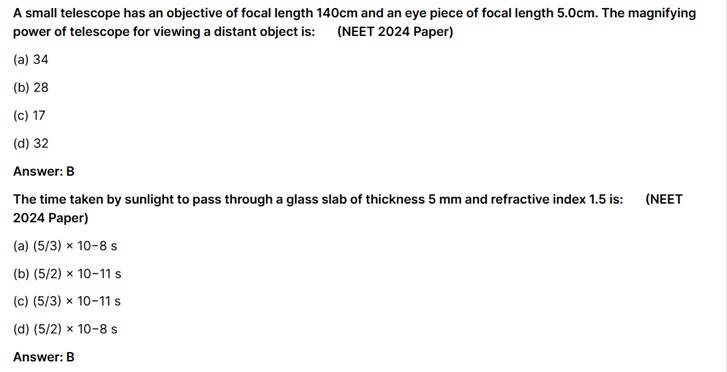

A small telescope has an objective of focal length 140cm and an eye piece of focal length 5.0cm. The magnifying power of telescope for viewing a distant object is:       (NEET 2024 Paper)

(a) 34

(b) 28

(c) 17

(d) 32

Answer: B

The time taken by sunlight to pass through a glass slab of thickness 5 mm and refractive index 1.5 is:       (NEET 2024 Paper)

(a) (5/3) × 10−8 s

(b) (5/2) × 10−11 s

(c) (5/3) × 10−11 s

(d) (5/2) × 10−8 s

Answer: B

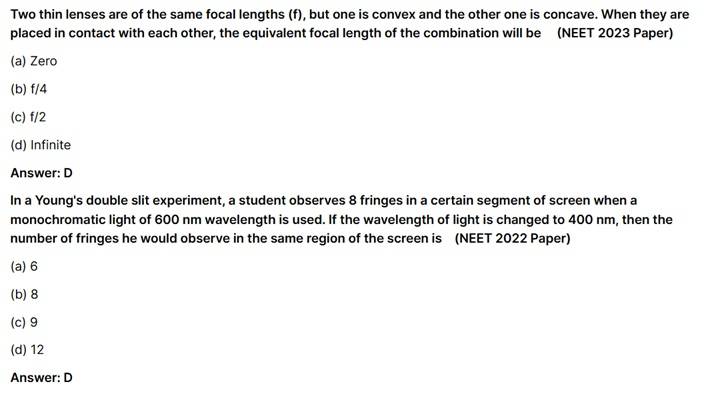

Two thin lenses are of the same focal lengths (f), but one is convex and the other one is concave. When they are placed in contact with each other, the equivalent focal length of the combination will be     (NEET 2023 Paper)

(a) Zero

(b) f/4

(c) f/2

(d) Infinite

Answer: D

In a Young's double slit experiment, a student observes 8 fringes in a certain segment of screen when a monochromatic light of 600 nm wavelength is used. If the wavelength of light is changed to 400 nm, then the number of fringes he would observe in the same region of the screen is    (NEET 2022 Paper)

(a) 6

(b) 8

(c) 9

(d) 12

Answer: D

Answer: D

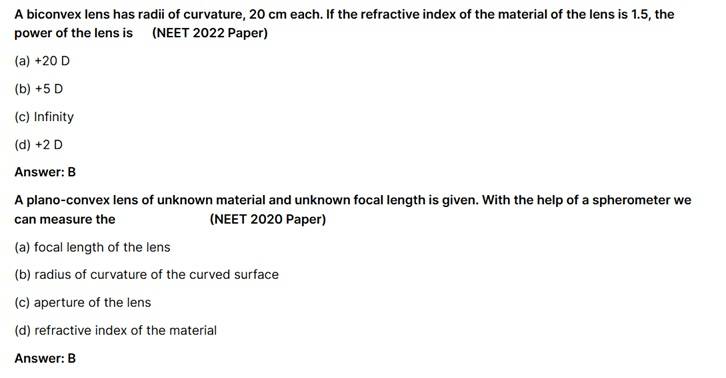

A biconvex lens has radii of curvature, 20 cm each. If the refractive index of the material of the lens is 1.5, the power of the lens is      (NEET 2022 Paper)

(a) +20 D

(b) +5 D

(c) Infinity

(d) +2 D

Answer: B

A plano-convex lens of unknown material and unknown focal length is given. With the help of a spherometer we can measure the                              (NEET 2020 Paper)

(a) focal length of the lens

(b) radius of curvature of the curved surface

(c) aperture of the lens

(d) refractive index of the material

Answer: B

Also Read: How to Score 600+ marks in NEET 2026?

Ray Optics NEET PYQ PDF Download

Download the Ray Optics NEET previous year questions PDF for free below-

Other NEET PYQs-
